DC Gear Motor with Hall Encoder JGA25-371 GM25-371

SKU
MD-00624
PKR4,250.00
Quantity: 10

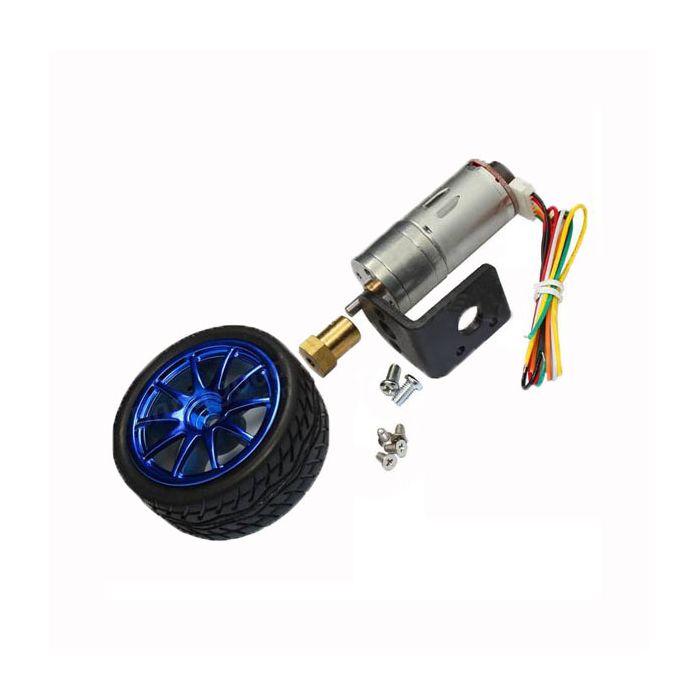

DC Gear Motor with Hall Encoder JGA25-371
  • Buy 3 for PKR4,037.50 each and save 5%
  • Buy 10 for PKR3,910.00 each and save 8%

SPECIFICATIONS:

  1. Voltage: DC 6V/12V
  2. Shaft diameter: 4mm
  3. Length: 12mm
  4. Encoder motor end: 11 signals
  5. Terminal connection length: 20cm
  6. Rated Voltage: DC 6V
  7. No-load Speed: 210RPM 0.13A
  8. Max Efficiency: 2.0kg.cm/170rpm/2.0W/0.60A
  9. Max Power: 5.2kg.cm/110rpm/3.1W/1.10A
  10. Stall Torque: 10kg.cm 3.2A
  11. Retarder Reduction Ratio: 1 :34
  12. Hall Resolution: Hall x Ratio 34.02 = 341.2PPR

PIN CONFIGURATION:

 pin configurations

PACKAGE INCLUDES:

  1. 1 X DC Gear Motor with Hall Encoder JGA25-371
Part Number JGA25-371
Manufacturer Made in China
Weight (KG) 0.165000
Size (mm) NA
Product Availability In Stock
