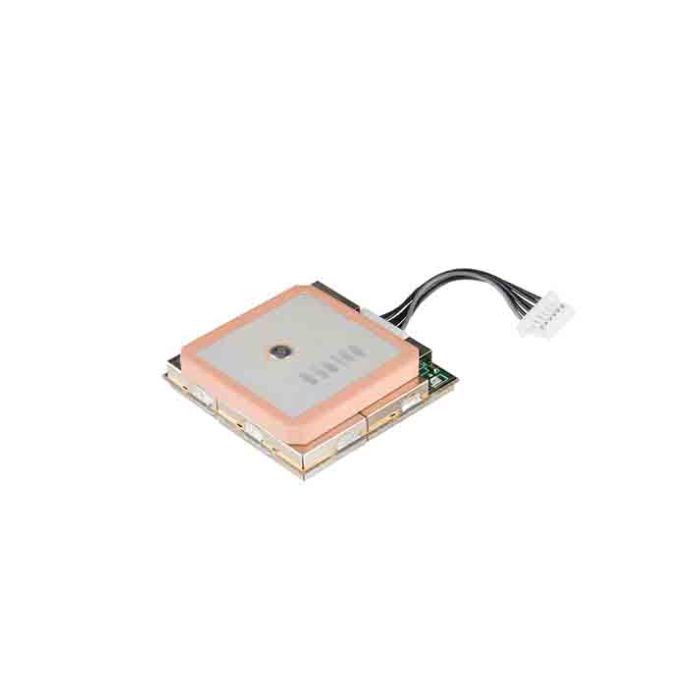

GPS Receiver EM-506 (48 Channel)

SKU
MD-00546
PKR4,620.00
Quantity: 0
The EM-506 GPS receiver from USGlobalSat based on the spectacular SiRF StarIII chipset.

The EM-506 GPS receiver from USGlobalSat based on the spectacular SiRF StarIII chipset. This complete module is built upon the same technology as the ET-301, but includes on-board voltage regulation, LED status indicator, battery backed RAM, and a built-in patch antenna! 6-pin interface cable included.This EM-506 GPS module is powered by SiRF Star IV, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. With SiRF CGEE (Client Generated Extended Ephemeris) technology, it predicts satellite positions for up to 3 days and delivers CGEE-start time of less than 15 seconds under most conditions, without any network assistance.

FEATURES:

  1. 48-Channel Receiver
  2. Extremely high sensitivity : -163dBm
  3. 2.5m Positional Accuracy
  4. Hot Start : 1s
  5. Warm Start : 35s / 15s with CGEE
  6. Cold Start : 35s / 15s with CGEE
  7. 45-55mA at 4.5-6.5V

RELATED DOCUMENTS:

  1. Datasheet.

PACKAGE INCLUDES:

  1. 1 X GPS Receiver EM-506 (48 Channel)
Part Number NA
Weight (KG) 0.020000
Manufacturer Sparkfun
Voltage (Min) 4.5V
Voltage (Max) 6V
Output Voltage NA
Power -163 dBm)
Current (A) 40m
Frequency 1.575 Ghz
Load Cell (kg) NA
Output Type Digital and Analog
Range 48 Channel
Temperature Range (Min) -40°C
Operating System NA
Resistance Value (Ohm) NA
Baud Rate NA
Interface NA
Num of Pin's NA
Diameter NA
Size (mm) NA
