Rigol - Digital Oscilloscope DS1054Z 4 Channels (50 MHz)

SKU
MD-00836
PKR179,500.00
Quantity: 0

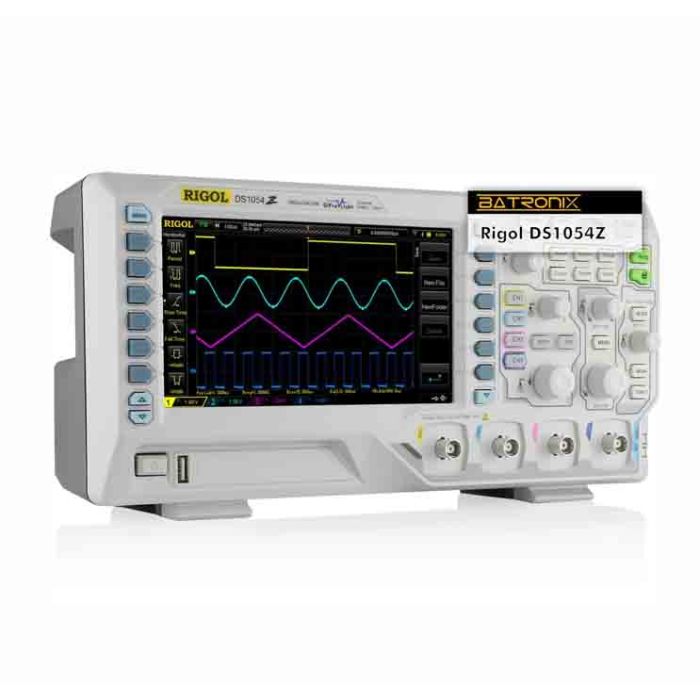

Rigol 4-channel Digital Oscilloscope DS1054Z (50 MHz)
  • Buy 3 for PKR83,450.00 each and save 54%
  • Buy 10 for PKR79,990.00 each and save 55%
  • Buy 25 for PKR78,500.00 each and save 56%

The Rigol DS1054Z is a very high quality four channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 50 MHz.The Rigol oscilloscopes are equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.

This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS1054Z has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quicky. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

FEATURES:

  1. 50MHz Bandwidth, 4 channels
  2. 1G Sa/s Real-time Sample Rate
  3. 12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
  4. Innovative "UltraVision" technology
  5. Up to 30,000wfms/s Waveform Capture Rate
  6. 7 Inch WVGA (800x480), multiple intensity levels waveform display

SPECIFICATIONS:



  1. Model: DS1054Z
  2. Bandwidth: 50 MHz
  3. Analog Channels: 4
  4. Sample Rate: 1GSa/s (Single-channel), 500MSa/s(Dual-channel), 250MSa/s(Fulll-channel)
  5. Max Memory Depth: 12Mpts(standard) ,24Mpts(option)
  6. Max. Waveform Capture rate: Up to 30,000 wfms/s
  7. Real Time waveform Record and Replay: Up to 60, 000 Frames(Opt.)
  8. Std. Probes: RP2200 150MHz BW Passive Probe:4 sets
  9. Built in 2 Ch Source: No

RELATED DOCUMENTS:

  1. Datasheet.

PACKAGE INCLUDES:

  1. 1 x Rigol 4-channel Digital Oscilloscope DS1054Z (50 MHz)
Part Number DS1054Z
Manufacturer RIGOL
Weight (KG) 5.000000
Bandwidth 50MHz
Input Impedance Analog channe: (1 MΩ±1%) || (15 pF±3 pF),Digital channel: (100 kΩ±1%) || (8 pF±3 pF)
Sampling Rate Analog channe: 1 GSa/s (single-channel), 500 Msa/s (dual-channel), 250 MSa/s (3/4-channel) Digital channel: 1 GSa/s (8-channel), 500 MSa/s (16-channel)
Vertical Resolution Analog channe: 8 bit, Digital channel: 1 bit
