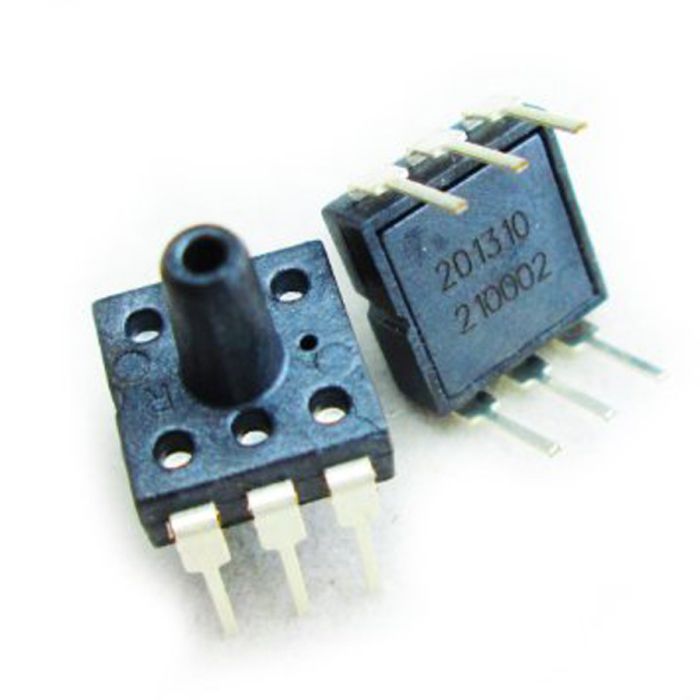

Sphygmomanometer Pressure Sensor MPS20N0040D-D DIP-6 0-40kPa

More Views

Sphygmomanometer Pressure Sensor MPS20N0040D-D DIP-6 0-40kPa
SKU: SN-00050

Regular Price: PKR 500.00

Special Price PKR 410.00

  • Buy 3 for PKR 380.00 each and save 8%
  • Buy 10 for PKR 370.00 each and save 10%
  • Buy 50 for PKR 360.00 each and save 13%

Availability: In stock

This DIP air pressure sensor is suitable for biomedical, meteorology and other fields. The core part is pressure sensor chip which is make by the MEMS pressure technology.
Description

Details

SPECIFICATIONS:



  1. Measuring medium: air
  2. Measuring range: 0-40kPa
  3. Operating temperature range: -40 ℃ ~ + 125 ℃
  4. Storage Temperature: -40 ℃ ~ + 150 ℃
  5. Humidity: (50% ± 10%) RH
  6. Ambient temperature: (25 ± 1) ℃
  7. Medium temperature: (25 ± 1) ℃
  8. Output impedance: 4kΩ ~ 6kΩ
  9. Zero output: -15mV~+15mV
  10. Hysteresis: +-0.7%F.S.
  11. Power supply: ≤10V DC or ≤2.0mA DC
  12. Insulation resistance: 100MΩ, 100VDC

RELATED DOCUMENTS:





  1. Sphygmomanometer Pressure Sensor MPS20N0040D Datasheet

APPLICATIONS:



  1. Automobile: tire pressure gauge, vehicle-mounted air pump, the MAP sensors, diagnostic equipment, automotive sensors.
  2. Industry: air brake switch, portable pressure gauge, such as digital pressure gauge, environment monitor.
  3. Medical equipment: patient monitoring and diagnostic equipment, such as blood pressure monitor, medical instrument, and monitor.

PACKAGE INCLUDES:





  1. 1 X Sphygmomanometer Pressure Sensor MPS20N0040D-D DIP-6 0-40kPa



Additional Information

Additional Information

Part Number MPS20N0040D-D
Manufacturer Made in China
Weight (g) 11.0000
