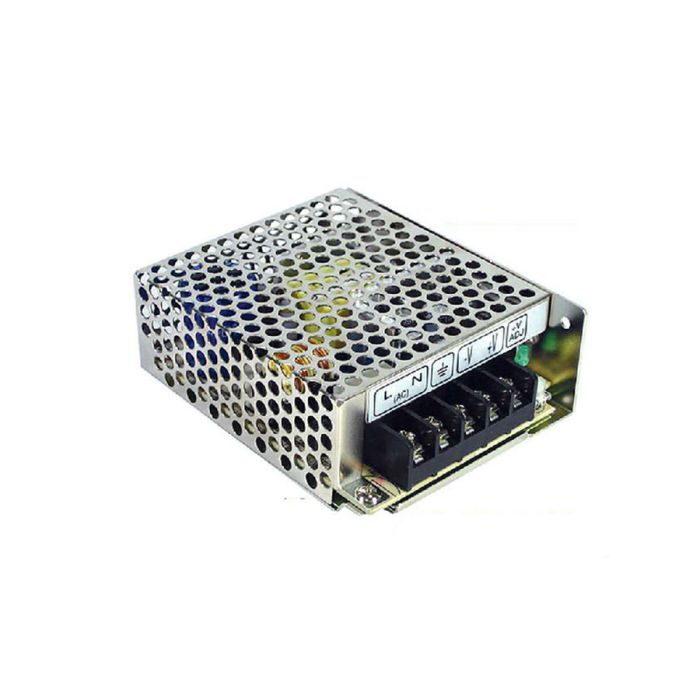

MeanWell - Adjustable Switching Power Supply 12v 1.3A RS-15-12

More Views

MeanWell - Adjustable Switching Power Supply 12v 1.3A RS-15-12
SKU: MD-00056
PKR 1,850.00
  • Buy 3 for PKR 1,680.00 each and save 10%
  • Buy 10 for PKR 1,610.00 each and save 13%
  • Buy 25 for PKR 1,570.00 each and save 16%

Availability: In stock

1) Rated Power: 15.6w
2) Rated Current: 1.3A
3) Input Voltage: 85 ~ 264VAC
4) Output Voltage: 12VDC
5) Size: 78*51*28mm (L*W*H)
Description

Details

Specification:

1) Output:
-Dc Voltage: 12V
-Current Range: 0 ~ 1.3A
-Rated Current: 42A
-Rated Power: 15.6W
-Ripple & Noise (max.): 150mVp-p
-Voltage Adj. Range: 10.8~13.2V
-Line Regulation: 0.5%
-Hold Up Time (Typ.): 100ms/230VAC 20ms/115VAC at full load
2) Input:
-Voltage Range: 85 ~ 264VAC 120 ~ 370VDC
-Frequency Range: 47 ~ 63Hz
-Power Factor (Typ.): 0.95/230VAC 0.98/115VAC at full load
-Leakage Current: <2mA / 240VAC

3)Protection:
-Over Load:
1) Above 105% rated output power
2) Protection type : Hiccup mode, recovers automatically after fault condition is removed

-Over Voltage:
1) 13.8 ~ 16.2V
2) Protection type : Shut off

-Over Temperature:
1) U1 Tj 140 typically (U1) detect on main control IC
2) Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
3) Protection type : Shut down o/p voltage with auto-recovery

4) NOTE:
1) All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25Cof ambient temperature.
2) Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3) Tolerance : includes set up tolerance, line regulation and load regulation.
4) Line regulation is measured from low line to high line at rated load.
5) Load regulation is measured from 0% to 100% rated load.
Additional Information

Additional Information

Part Number RS-15-12
Manufacturer Mean Well
Weight (g) 18.0000
