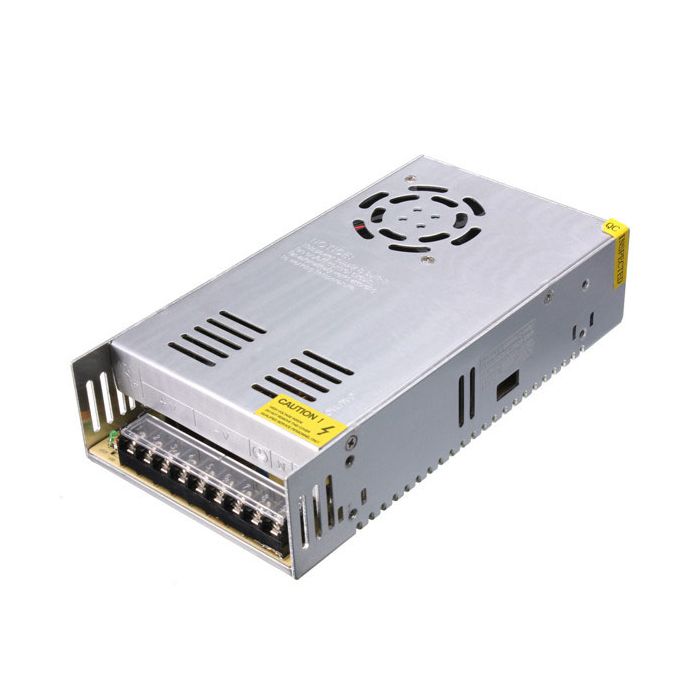

3D Printer Iprusa i3 Engraving Machine 12V Power Supply

SKU
MD-00169
PKR 4,550.00
In stock
Quantity: 0
3D Printer Iprusa i3 Engraving Machine 12V Power Supply
  • Buy 3 for PKR 3,490.00 each and save 23%
  • Buy 10 for PKR 3,320.00 each and save 27%

FEATURES:

  1. Miniaturization
  2. Short circuit protection / overload / overvoltage
  3. 100% full load burn-in test
  4. Input voltage & frequency range: 85 ~ 264VAC / 47 ~ 63Hz
  5. Current: 30A
  6. Output adjustment range: ± 10% (rated output voltage)
  7. Overload protection: 105% ~ 200% (rated load)
  8. Overvoltage: 115% ~ 135% (rated output voltage)

SPECIFICATIONS:

  1. Short circuit protection: self-recovery
  2. Output start time: ≤2S,120VAC ≤1.0S,230VAC
  3. Output hold time:  ≥10mS,120VAC, ≥20mS,230VAC
  4. Dielectric strength: input - output: AC1500V, 1min
  5. Input - cabinet: AC1500V, 1min
  6. Output - cabinet: DC500V, 1min
  7. Working environment:  -10 ℃ ~ 50 ℃; 20% ~ 90% RH (non-condensing)
  8. Design safety standards reference EN / UL60950
  9. EMC standard reference design: EN55022 Class B;EN61000-4-2 / -3 / -4 / -5 / -6 / -11

PACKAGE INCLUDES:

  1. 1 X 3D Printer Iprusa i3 Engraving Machine 12V Power Supply



Manufacturer Made in China
Weight (KG) 0.768000
