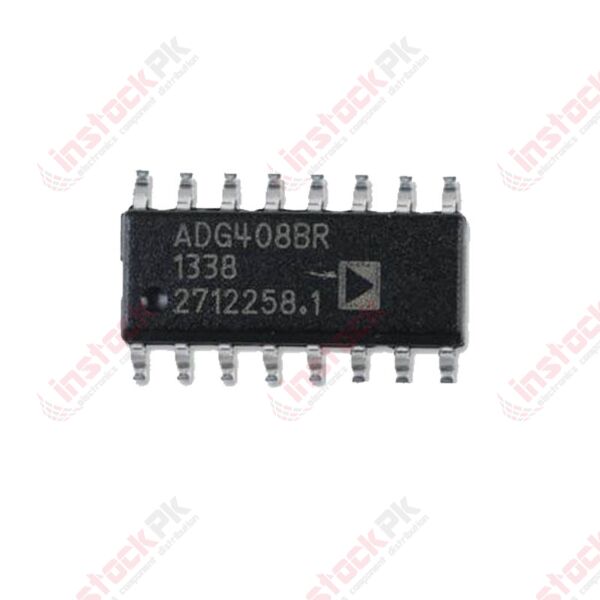

8-Channel Analog Multiplexers IC ADG408BR

The ADG408 are monolithic CMOS analog multiplexers comprising eight single channels and four differential channels, respectively. The ADG408 switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1, and A2. An EN input on both devices is used to enable or disable the device. When the device is disabled, all channels are switched off.

The ADG408 are designed on an enhanced LC2MOS process that provides low power dissipation yet gives high switching speed and low on resistance. Each channel conducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG408 are improved replacements for the DG408/DG409 analog multiplexers.

FEATURES:

1. 44 V supply maximum ratings
2. VSS to VDD analog signal range
3. Low on resistance (100 Ω maximum)
4. Low power (ISUPPLY < 75 μA)
5. Fast switching
6. Break-before-make switching action
7. Plug-in replacement for DG408/DG409
8. Low Power Dissipation.
9. Low RON.
10. Single-Supply Operation. For applications where the analog signal is unipolar, the ADG408 can be operated from a single rail power supply. The parts are fully specified with a single 12 V power supply and remain functional with single supplies as low as 5 V.

RELATED DOCUMENTS:

1. 8-Channel Analog Multiplexers IC ADG408BR Datasheet.

PACKAGE INCLUDES:

1. 1 X 8-Channel Analog Multiplexers IC ADG408BR
