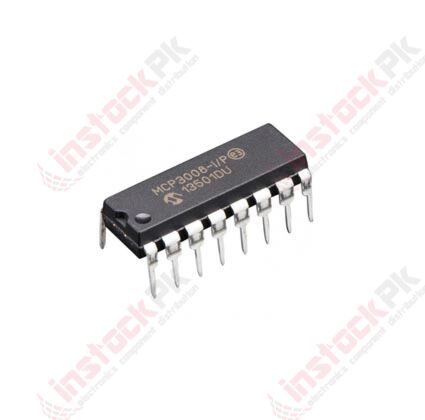

8-Channel Analog to Digital Converter IC MCP3008 (DIP16)

SKU
MD-00724
PKR 430.00
In stock
Quantity: 50
8-Channel Analog to Digital Converter IC MCP3008 (DIP16)
  • Buy 3 for PKR 410.00 each and save 5%
  • Buy 10 for PKR 390.00 each and save 9%
  • Buy 50 for PKR 365.00 each and save 15%

SPECIFICATIONS:

  1. Mounting Style: Through Hole
  2. Package / Case: DIP-16
  3. Resolution: 10 bit
  4. Number of Channels: 8-Channel
  5. Sampling Rate: 200 kS/s
  6. Input Type: Single-Ended
  7. Interface Type: Serial, 4-Wire, SPI
  8. SNR - Signal to Noise Ratio: 61 dB
  9. Maximum Operating Temperature: + 85 C
  10. Minimum Operating Temperature: - 40 C
  11. Number of Converters:1-Converter
  12. Operating Supply Voltage: 2.7 V to 5.5 V

RELATED DOCUMENTS:

  1. Datasheet.

PACKAGE INCLUDES:

  1. 1 X 8-Channel Analog to Digital Converter IC MCP3008 (DIP16)
Part Number MCP3008
Weight (KG) 0.001000
Manufacturer Microchip
Model Number MCP3008
Voltage (Min) 2.7V
Voltage (Max) 5.5V
Power NA
Current (A) NA
Temperature Range (Min) -40°C
Temperature Range (Max) 85°C
Memory 10 bit
Num of Pin's 16
SMD_Package DIP-16
