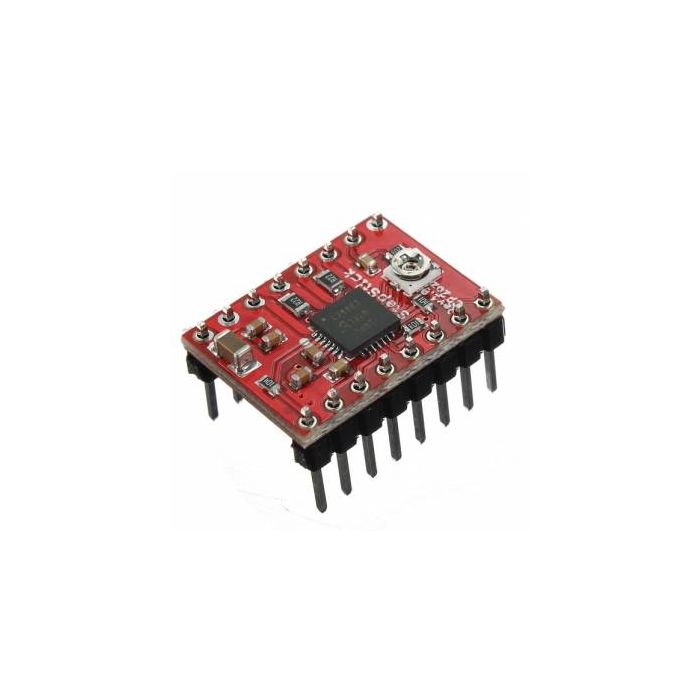

Stepper Motor Driver Module (A4988)

More Views

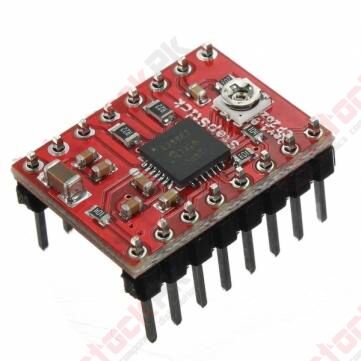

Stepper Motor Driver Module (A4988)
SKU: CM-00070
PKR 210.00
  • Buy 3 for PKR 190.00 each and save 10%
  • Buy 10 for PKR 175.00 each and save 17%
  • Buy 50 for PKR 155.00 each and save 27%

Availability: In stock

A4988 is a complete microstepping motor driver with built-in translator for easy operation. This product is available in full, half, 1/4, 1/8 and 1/16 step modes operate bipolar stepper motors, output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator in slow or mixed decay modes.
Description

Details

A4988 is a complete microstepping motor driver with built-in translator for easy operation. This product is available in full, half, 1/4, 1/8 and 1/16 step modes operate bipolar stepper motors, output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator in slow or mixed decay modes. A4988 converter is the key to the easy implementation. As long as the "step" input inputting one pulse drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened.
In the micro-step operation, A4988 chopping control inside automatically selects the current decay mode (Slow or Mixed). In mixed decay mode, the device is initially set to a fixed downtime in some fast decay, then the rest of the slow decay downtime. Mixed decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry is provided to improve the pulse-width modulation (PWM) operation power consumption. Internal circuit protection includes: thermal shutdown with hysteresis, undervoltage lockout (UVLO), and crossover-current protection. Special power sequencing.

SPECIFICATIONS:

1) Low RDS (ON) outputs
2) Automatic current decay mode detection / selection
3) Mixed with slow current decay modes
4) Synchronous rectification for low power dissipation
5) Internal UVLO
6) Crossover-current protection
7) 3.3 and 5 V compatible logic supply
8) Thermal shutdown circuitry
9) Ground Fault Circuit
10) Load short-circuit protection
11) Five optional step mode: full, 1/2, 1/4, 1/8 and 1/16

Additional Information

Additional Information

Part Number A4988
Manufacturer Made in China
Weight (g) 3.0000
Reviews

Customer Reviews 1 item(s)

9/10 for the product and i really liked the instock.pk services plus the best prices that are even lower then the market ones.
First thing its not the same as shown in picture. By that i mean that its a clone not the original board developed by "Stepstick". However the quality of board/soldering of component is all perfect and neat and they perform well too.
The reason to mention its a clone is that the Rs(sense resistor) is 0.1ohm so the vref formula for this particular board is Vref = I_TripMax * 8 * Rs or simply Vref = I_TripMax * 0.8.

The formula is a must thing to be mentioned on the site as the current limitation depends on it and setting higher or lower current than required leads into problems.
