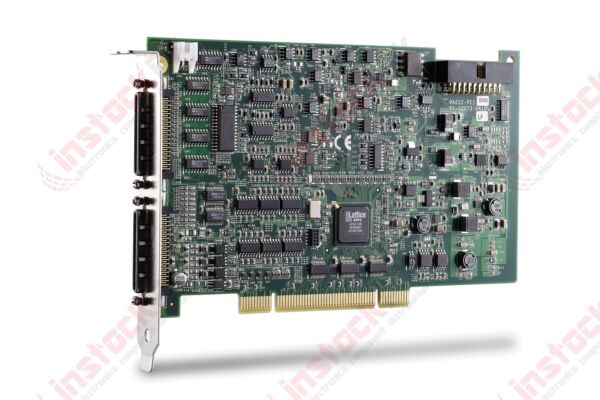

ADLink: Multi Function DAQ Card

SKU
MD-01539
PKR 71,500.00
In stock
Quantity: 0
16-CH 12/16-Bit 100 kS/s Low-Cost Multi-Function DAQ Cards
DLINK PCI-9111 series are 16-CH, 100 kS/s low cost multi-function DAQ card. The PCI-9111 series feature flexible configurations on analog inputs. A RC filter is implemented on each A/D input channel for user to attenuate or filter input signal. The PCI-9111 series provide analog inputs with 5 programmable input ranges for bipolar inputs. The PCI-9111 series also support automatic analog input scanning. PCI-9111DG provides 12-bit A/D resolution while PCI-9111HR provides 16-bit A/D resolution. The PCI-9111 series also feature 1-CH 12-bit analog output, 16-CH TTL digital inputs and 16-CH TTL digital outputs. ADLINK PCI-9111 series deliver cost-effective and reliable data acquisition capabilities, and is ideal for a broad variety of applications.
Ordering Information
  • PCI-9111DG
    16-CH 12-Bit 100 kS/s Low Cost Multi-Function DAQ Card
  • PCI-9111HR
    16-CH 16-Bit 100 kS/s Low Cost Multi-Function DAQ Card
Accessory
  • DIN-37D-01
    Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mouting (Cables are not included)
  • ACLD-9182A-01
    Terminal board with 16-CH Isolated Digital Inputs (Cables are not included)
  • ACLD-9185-01
    Terminal Board with 16-CH Relay Outputs (Cables are not included)
  • DIN-20P-01
    Terminal Board with One 20-pin Ribbon Connector and DIN-Rail Mounting (Cables are not included)
  • ACLD-9137-01
    General-Purpose Terminal Board with One 37-pin D-sub Male Connector
Part Number N PCI-9111DG
Weight (KG) 0.100000
Memory NA
