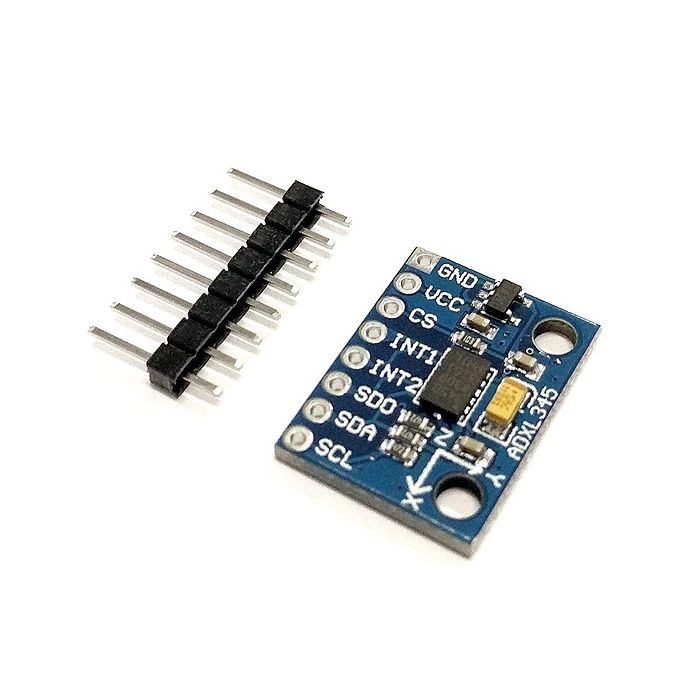

Digital 3-Axis Acceleration, Gravity, Tilt Sensor Module ADXL345 – GY-291

More Views

Digital 3-Axis Acceleration, Gravity, Tilt Sensor Module ADXL345 – GY-291
SKU: SN-00059

Regular Price: PKR 300.00

Special Price PKR 230.00

Availability: In stock

The ADXL345 is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.
Description

Details

The ADXL345 is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.

The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°.

Specifications:

  1. Model: GY-291
  2. Color: Blue
  3. Material: PCB + brass
  4. Features Chipset: ADXL345
  5. Power supply :3~5V
  6. Communication methods: IIC/SPI communication protocol
  7. Measuring range: +/- 2g +/-16g; 3-Axis, +/- 2g; +/-4g; +/-8g; +/- 16g
  8. Applications: Flying robots, Stability control applications

Package Includes:

  1. GY-291 ADXL345 Sensor Module
  2. Male Header Pins
  • ADXL345 DataSheet
  • ADXL345 Arduino library
  • Sensor Library
  • Additional Information

    Additional Information

    Part Number GY-291
    Manufacturer Made in China
    Weight (g) 50.0000
