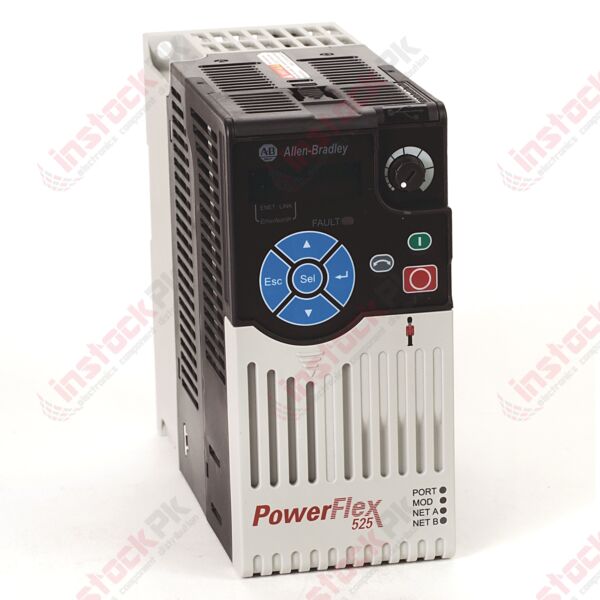

Allen Bradley: PowerFlex 525 Variable AC Inverter Drive, 480VAC, 3HP / 2.2kW, 6.0 Amp

SKU
MD-01583
PKR 96,500.00
In stock
Quantity: 0
Allen-Bradley 25B-D6P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
The PowerFlex® 520-Series AC drive delivers an innovative design that is remarkably versatile and can accommodate systems ranging from standalone machines to simple system integration. The PowerFlex 523 drive provides general purpose control for applications ranging up to 30 HP and 22 KW. The PowerFlex 525 drive provides maximum flexibility and performance ranging up to 30 HP and 22 KW. By combining a variety of motor control options, communications, energy savings and standard safety features in a cost-effective drive, the PowerFlex 520-Series drive is suitable for a wide array of applications. Maximize your system performance and productivity by taking advantage of the following key features offered in a PowerFlex 520-Series drive.

Features:

  • PowerFlex 525 AC Drives feature an innovative, modular design to support fast and easy installation and configuration.
  • This next generation of compact drives offers embedded EtherNet/IP communications, USB programming, and standard safety features.
  • Operate at temperatures as high as 70 °C (158 °F), and they are ideal for applications such as conveyors, fans, pumps, and mixers.
  • Features Safe Torque-Off which is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.
  • Detachable control module and power module allow simultaneous configuration and installation
  • Each drive has a standard control module used across the entire power range
  • Without EMC filter
  • Standard braking
  • Standards: ACS 156, ATEX, C-tick, C/US UL listed, CE certified, EPRI/SEMI F47, GOST-R, KCC, loyd’s register, RoHS complained, TUV FS ISO/EN13849-1 (EN954-1)

Technical Details:

  • Item Name: Air Cooled Drive

  • Sub Brand: PowerFlex®525

  • Voltage Rating: Input: 380 - 480 V, Output: 480 VAC

  • Amperage Rating: 6 A

  • Wattage: 2.2 KW

  • Phase: 3 PH

  • HP Rating: 3 HP

  • Frame Size: Size A

  • Frequency Rating: 50/60 HZ

  • Power Factor: 0.98

  • Control: EtherNet IP-USB-RS485

  • Mounting: Panel

  • Display: Integral Keypad With Potentiometer And LED

  • Connection: Fixed Terminal

  • Enclosure: IP20, Open Type

  • Dimension: 5.98 IN Width X 6.77 IN Height X 2.83 IN Depth

Part Number 25B-D6P0N104
Manufacturer Allen Bradley
Weight (KG) 1.800000
Packing Unit 1pc
Memory NA
