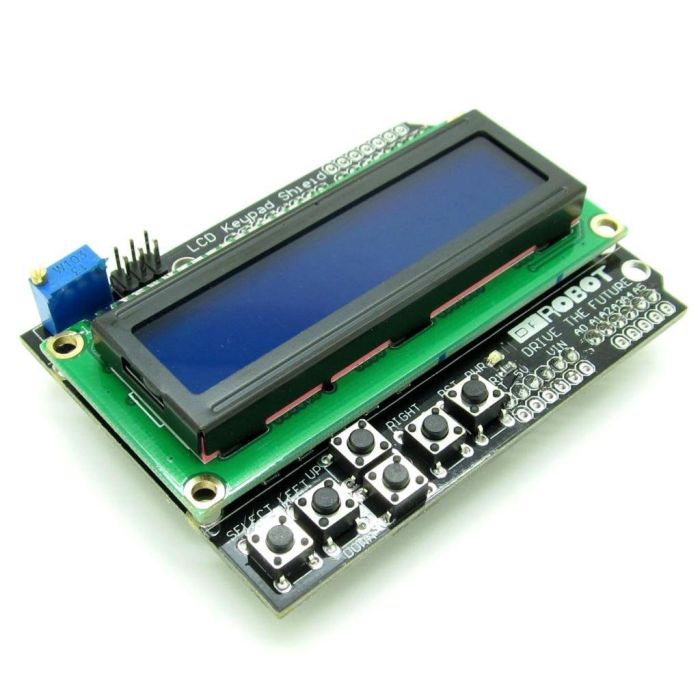

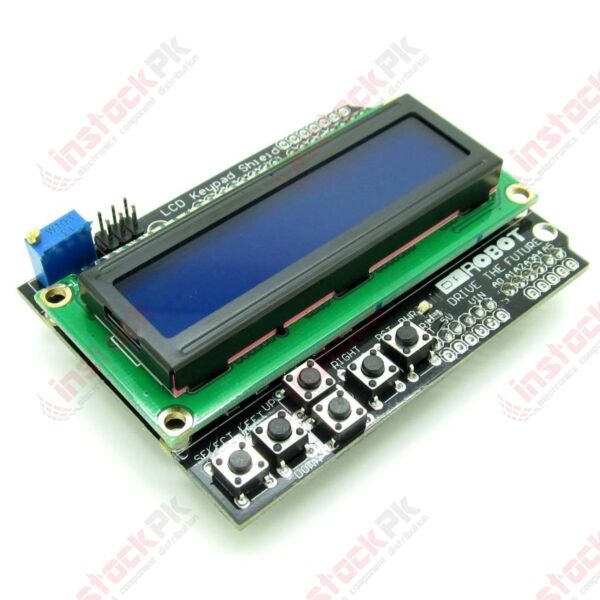

Arduino Blue LCD1602 16x2 LCD with Keypad Shield
SKU
MD-00108
PKR750.00
Quantity: 26
1602 LCD is also known as 1602 character LCD, a specially designed dot matrix LCD module which is used for displaying letters, numbers and symbols etc.
- Buy 3 for PKR712.50 each and save 5%
- Buy 10 for PKR690.00 each and save 8%
- Buy 50 for PKR637.50 each and save 15%
Categories: Shields & Accessories, LCDs
1602 LCD is also known as 1602 character LCD, a specially designed dot matrix LCD module which is used for displaying letters, numbers and symbols etc. It consists of several 5X7 or 5X11 other dot matrix character bits,each dot matrix character bit can display a character, the interval between each bit measures a dot pitch, the interval also exists between each line, all above have a character spacing and row spacing effect. This item is based on HD44780 LCD chip and adopts standard 16-pin interface.
Specifications:
- LCD Keypad Shield input-output expansion board using a two-line 16 character LCD.
- This board is with contrast adjustment and backlight.
- Using an analog input port will complete five buttons, a reset button, unused IO ports are extended out of the reserve,make full use of IO ports.
- Occupancy figures port: PIN4 (DB4), 5 (DB5), 6 (DB6), 7 (DB7), 8 (RS), 9 (E), 10 (backlight control), an analog buttonport A0. Used in conjunction with Arduino
LCD DataSheet here
| Part Number | NA |
|---|---|
| Manufacturer | Made in China |
| Weight (KG) | 0.010000 |
| Product Availability | In Stock |
