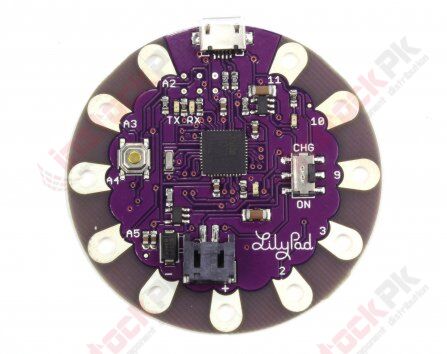

Arduino LilyPad USB based on ATmega32U4

More Views

Arduino LilyPad USB based on ATmega32U4
SKU: AB-00700
PKR 1,150.00

Availability: In stock

The LilyPad Arduino is a microcontroller board designed for wearables and e-textiles. It can be sewn to fabric and similarly mounted power supplies, sensors and actuators with conductive thread. The board is based on the ATmega32U4. Board comes fully assembled and tested with ATMega168V pre-loaded with bootloader.
Description

Details

The LilyPad Arduino is a microcontroller board designed for wearables and e-textiles. It can be sewn to fabric and similarly mounted power supplies, sensors and actuators with conductive thread. The board is based on the ATmega32U4. Board comes fully assembled and tested with ATMega168V pre-loaded with bootloader. The LilyPad For Arduino USB is a microcontroller board based on the ATmega32u4. It has 9 digital input/output pins (of which 4 can be used as PWM outputs and 4 as analog inputs), an 8 MHz resonator, a micro USB connection, a JST connector for a 3.7V LiPo battery, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a battery to get started.The LilyPad For Arduino USB differs from previous LilyPad boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a separate USB-to-serial adapter. This allows the LilyPad For Arduino USB to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board. Microcontroller ATmega32u4 Operating Voltage 3.3V Input Voltage 3.8V to 5V Digital I/O Pins 9 PWM Channels 4 Analog Input Channels 4 DC Current per I/O Pin 40 mA Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader SRAM 2.5 KB (ATmega32u4) EEPROM 1 KB (ATmega32u4) Clock Speed 8 MHz .
Additional Information

Additional Information

Part Number No
Manufacturer Arduino
Weight (g) 18.0000
