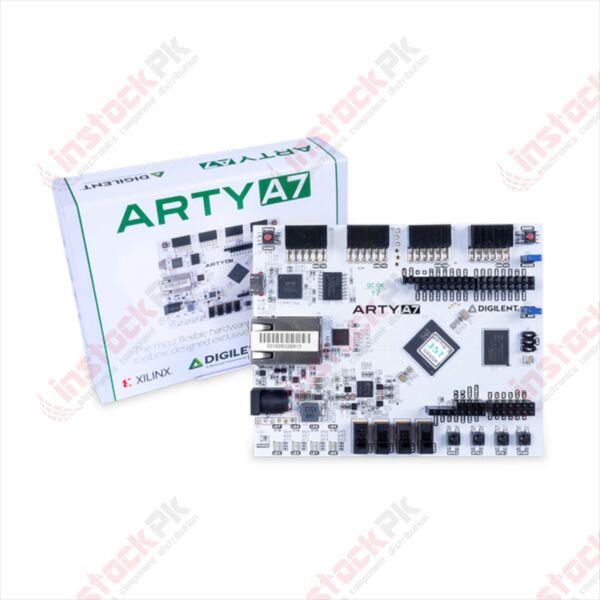

Arty A7: Artix-7 FPGA Development Board Arty A7-35T

Arty A7: Artix-7 FPGA Development Board Arty A7-35T
SKU: MD-01241
PKR 23,800.00
  • Buy 2 for PKR 23,100.00 each and save 3%
  • Buy 5 for PKR 22,300.00 each and save 7%

Availability: In stock

Arty is a ready-to-use development platform designed around the Artix-7™ Field Programmable Gate Array (FPGA) from Xilinx.
Description

Details

Product Description

Vivado Design Suite voucher not included - Vivado Design Suite Edition is available for free download (Vivado WebPACK).

Arty is a ready-to-use development platform designed around the Artix-7™ Field Programmable Gate Array (FPGA) from Xilinx. It was designed specifically for use as a MicroBlaze Soft Processing System. When used in this context, Arty becomes an incredibly flexible processing platform, capable of adapting to whatever your project requires. Unlike other single board computers, Arty isn't bound to a single set of processing peripherals; one moment it's a communication powerhouse chock-full of UARTs, SPIs, IICs, and an Ethernet MAC, and the next it's a meticulous timekeeper with a dozen 32-bit timers. Additionally, with the universally popular expansion headers (Arduino™ R3 Headers and our Pmod™ headers), Arty will become the most adaptable tool in your project tool box.

Support Materials

DatasheetSchematics (PDF)

For all other material:

Resource Center

Note:

The official distribution channel for the Arty A7-35T is through Avnet and Digilent only.

Features:

  • Arty A7 comes in two FPGA variants: Arty A7-35T features Xilinx XC7A35TICSG324-1L. Arty A7-100T features the larger Xilinx XC7A100TCSG324-1. Arty A7 variants have the features listed below:
  Arty A7-35T Arty A7-100T
FPGA part XC7A35TICSG324-1L XC7A100TCSG324-1
1 MSPS On-chip ADC Yes Yes
Logic Cells 32,280 101,440
Logic Slices 5,200 15,850
Flip-flops 29,200 65,200
Block RAM (Kbits) 1,800 4,860
Clock Management Tiles 5 6
DSP Slices 90 240



  • Xilinx Artix-7 FPGA
    • Internal clock speeds exceeding 450MHz
    • On-chip analog-to-digital converter (XADC)
    • Programmable over JTAG and Quad-SPI Flash
  • System Features
    • 256MB DDR3L with a 16-bit bus @ 667MHz
    • 16MB Quad-SPI Flash
    • USB-JTAG Programming circuitry (Micro USB cable not included)
    • Powered from USB or any 7V-15V source
  • System Connectivity
    • 10/100 Mbps Ethernet
    • USB-UART Bridge
  • Interaction and Sensory Devices
    • 4 Switches
    • 4 Buttons
    • 1 Reset Button
    • 4 LEDs
    • 4 RGB LEDs
  • Expansion Connectors
    • 4 Pmod connectors
    • Arduino/chipKIT Shield connector



What's
Included:

  • Arty Board Artix-7 FPGA (USB cable NOT included)
  • Digilent cardboard packaging with protective foam
Additional Information

Additional Information

Part Number A7-35T
Weight (g) 94.5000
Manufacturer Digilent
Model Number No
Voltage (V) Powered from USB or any 7V-15V source
Current (A) NA
Power NA
Processor Xilinx Artix-35T FPGA (xc7a35ticsg324-1L)
Frequency 667MHz
Memory 16MB Quad-SPI Flash
Operating System No
Temperature Range (Min) No
Temperature Range (Max) No
Display Type NA
Bluetooth Interface No
Interface 10/100 Mbps Ethernet, USB-UART Bridge
Size (mm) NA
