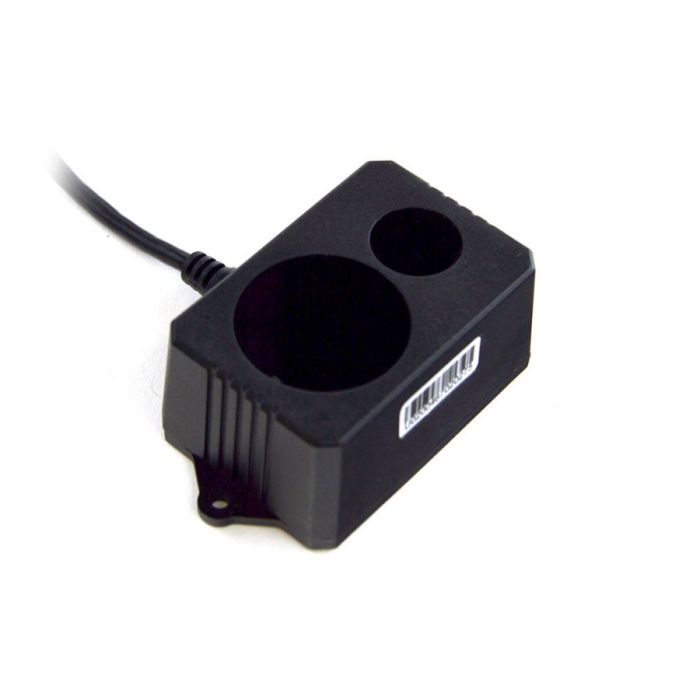

Benewake - LIDAR LED Rangefinder TF02 IP6
SKU: MD-01211
PKR 18,100.00
  • Buy 2 for PKR 17,500.00 each and save 4%

Availability: Preorder, Delivery in 15-20 Days



  • Unidirectional ranging LiDAR

  • Long range & high-precision

  • High-speed measurement

  • Widely used for height fixing and terrain following drones

  • Detection range: 22m


Description

Details

Description

  • Unidirectional ranging LiDAR
  • Long range & high-precision
  • High-speed measurement
  • Widely used for height fixing and terrain following drones
  • Detection range: 22m

The Benewake TF02 LIDAR LED Rangefinder IP65 (22 m) is a unidirectional ranging LiDAR, which is mainly used in height ranging and terrain following of drones, supporting flight controls like Plixhawk, APM, TopXGun, EFY Technology, aiAero, DAISCH and etc.

The protection design of the TF 02 is based on the IP65 level, which prevents it from the dust, water, and corrosion. It is anti-interferential from the strong light outdoors. It can work under 100K lux light without the interference from the temperature, humidity, light, electronics and airflow. High sensitivity, measuring distance up to 22 meters, accuracy in cm level. Scan frequency up to 100Hz, real-time detection of distance with a 100 times/second refresh rate for more accurate data. TF02 has a complete system, containing a protective shell made of materials with a high transmittance of infrared, which doesn't affect the optical performance.

It has been widely used in height fixing and terrain following of drones, especially in agriculture. As a considerably mature product in the market, TF02 has collected a large amount of experience and actual data in different situations, which has been taken as feedback for further improvements of the product itself. Meanwhile to guarantee the reliability of the TF02, we conducted a rigorous seismic test and the performance of TF02 turned out excellent.

Specifications

Performance

  • Detection Range: 0.4m-22m@indoor / 0.4m-10m@outdoor
  • Accuracy: Centimeter-level (2% Relative error)
  • Detection Frequency: 100Hz
  • Protection level: IP65
  • Anti-ambient light: Function under 100k Lux ambient light
  • Power: 5VDC, <200ma
  • Rep rate: 1-100Hz
  • Interface: UART



Applications

  • Height fixing of drones, terrain following
  • Machine control, security sensor
  • Distance measurement
Additional Information

Additional Information

Part Number TF02
Manufacturer Benewake
