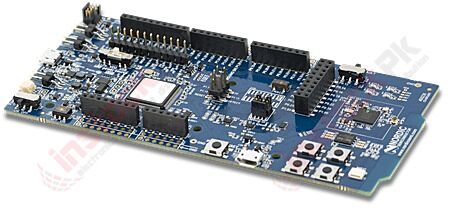

Nordic Semiconductor: Development Kit nRF52840-DK for Bluetooth 5 And Zigbee

SKU
MD-01160
PKR 9,850.00
In stock
Quantity: 0
The nRF52840 DK is a versatile single board development kit for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary applications on the nRF52840 SoC. It also supports development for the nRF52811 SoC.
  • Buy 3 for PKR 9,357.50 each and save 5%

The nRF52840 DK is a versatile single board development kit for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary applications on the nRF52840 SoC. It also supports development for the nRF52811 SoC.

It facilitates development exploiting all features of the nRF52840 SoC. It includes an NFC antenna that quickly enables utilization of the NFC-A tag peripheral. All GPIOs are available via edge connectors and headers, and 4 buttons and 4 LEDs simplifies input and output to and from the SoC.

It is Arduino Uno Revision 3 compatible, making it possible to mount 3rd-party shields with ease. It comes with an on-board SEGGER J-Link debugger allowing programming and debugging both the on-board SoC and external SoCs through the debug out header. It also interfaces directly with the Power Profiler Kit.

It can be powered with USB, but also includes a CR2032 battery holder, enabling in-field testing of prototypes.
SEGGER Embedded Studio, Keil, GCC and IAR IDEs and toolchains are supported, see this for more information.
The box includes an nRF52840 DK, an NFC antenna and a CR2032 battery. Hardware layout and schematics are available.

Part Number nRF52840-DK
Weight (KG) 0.050000
Manufacturer Nordic Semiconductor
Product Availability In Stock
Voltage (V) NA
Power NA
Frequency NA
Memory NA
Operating System NA
Temperature Range (Min) NA
Temperature Range (Max) NA
Bluetooth Interface No
Interface NA
