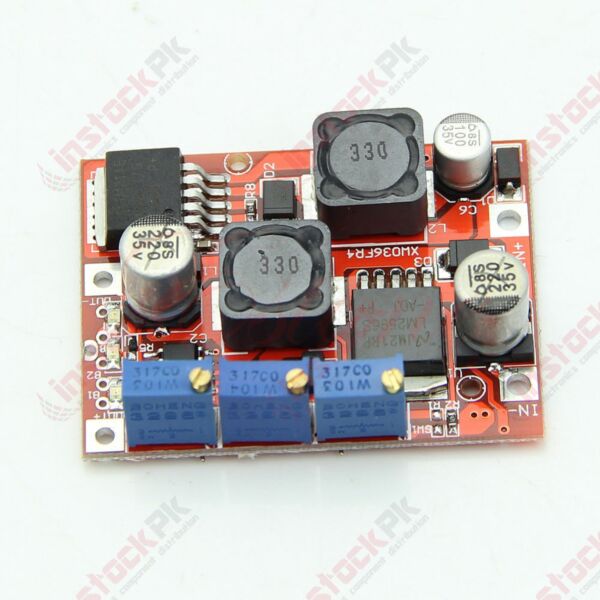

Boost Buck Voltage DC-DC Step Up Down Power Converter Module LM2577S LM2596S

PKR 830.00
In stock
SKU
MD-00105
Quantity: 1
  • Buy 3 for PKR 790.00 each and save 5%
  • Buy 10 for PKR 750.00 each and save 10%
  • Buy 50 for PKR 720.00 each and save 13%
This module power output is affect by the module itself-capacity and pre-and post-class load and other factors; the following data for professional equipment measured results, without considering other factors.

Description:



This module power output is affect by the module itself-capacity and pre-and post-class load and other factors; the following data for professional equipment measured results, without considering other factors.Power supply module is a kind of electronic components, please don't buy the item if you have no electronic expertise.
This Module Properties: It is non-isolated step-down constant current, constant voltage module (CC CV) charging module.

Specifications:



  1. Input Voltage :4-35V
  2. Output voltage: Continuously adjustable(1.25-25V unload adjust)
  3. Output current: 3A Max(If more than 15W, please install the heat sink)
  4. CC range :0-2A (adjustable)
  5. Revolving light current: CC value * (1%-100%), default is 0.1 times
  6. Minimum voltage difference: 2V
  7. Output power: natural cooling 15W
  8. Conversion efficiency: 80% (the higher the output voltage, the higher the efficiency)
  9. Operating Temperature: Industrial (-40 degree to +85 degree) (ambient temperature more than 40degree, lower power use, or add heat sink)
  10. Full load temperature rise: 45 degree
  11. Indicator: CC indicator is Red, charging indicator is Red, charging completed the indicator is Blue.
  12. Output short circuit protection: Yes, constant current.
  13. Connect method: Can solder on the PCB with wire directly
  14. Input: IN+ input Positive is, IN- input negative
  15. Output: OUT+ output is positive, OUT- output negative
  16. Module Size: 50 x 37 x 13mm

Applications:



  1. High-power LED constant current driver.
  2. Lithium batteries (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charge.
  3. Solar panels, wind generator voltage regulator circuit board power supply, such as automatic buck regulator circuit.

Package include:



  1. LM2577S LM2596S Converter Module   x   1

IC LM2596S Datasheet here
IC LM2577S Datasheet here
