Digilent - Nexys A7: FPGA Trainer Board Recommended for ECE Curriculum (A7-100T)

SKU
MD-01281
PKR 55,700.00
In stock

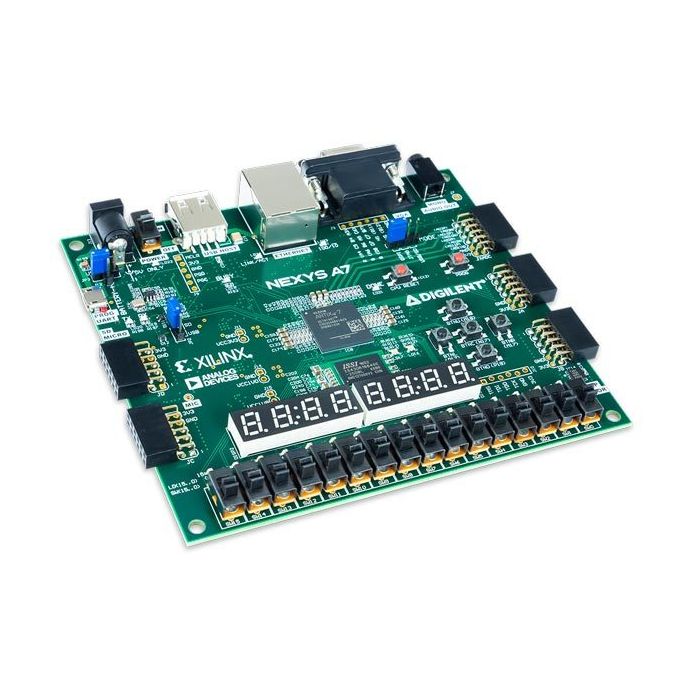

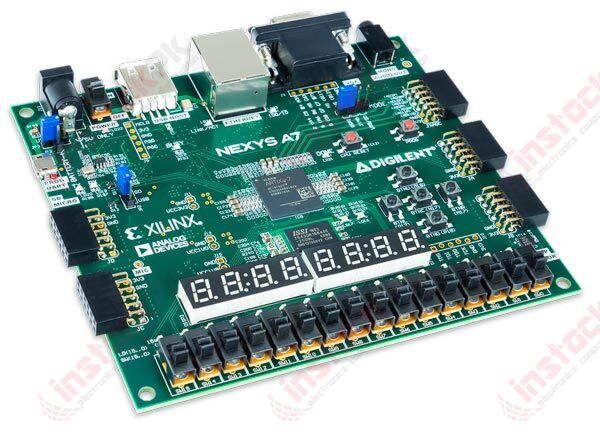

The Nexys A7 is the new name for our popular Nexys 4 DDR board, now available in two FPGA densities! Featuring the same Artix™-7 field programmable gate array (FPGA) from Xilinx®, the Nexys A7 is a ready-to-use digital circuit development platform designed to bring additional industry applications into the classroom environment.
  • Buy 2 for PKR 53,500.00 each and save 4%
  • Buy 5 for PKR 51,900.00 each and save 7%

The Nexys A7 is the new name for our popular Nexys 4 DDR board, now available in two FPGA densities! Featuring the same Artix™-7 field programmable gate array (FPGA) from Xilinx®, the Nexys A7 is a ready-to-use digital circuit development platform designed to bring additional industry applications into the classroom environment. The Artix-7 FPGA is optimized for high-performance logic, and offers more capacity, higher performance, and more resources than earlier designs. With its large, high-capacity FPGA and collection of USB, Ethernet, and other ports, the Nexys A7 can host designs ranging from introductory combinational circuits to powerful embedded processors. Several built-in peripherals, including an accelerometer, a temperature sensor, MEMs digital microphone, speaker amplifier, and plenty of I/O devices allow the Nexys A7 to be used for a wide range of designs without needing any other components.

The Nexys A7-100T is compatible with Xilinx's Vivado® Design Suite as well as the ISE® toolset, which includes ChipScope and EDK. Xilinx ISE has been discontinued in favor of Vivado® Design Suite.

The Nexys A7-50T variant is compatible only with Vivado® Design Suite.

Xilinx offers free WebPACK™ versions of these toolsets, so designs can be implemented at no additional cost.

The Nexys A7 is not supported by the Digilent Adept Utility.


Features:

Product VariantA7-100TA7-50T
Artix-7 Part XC7A100T-1CSG324C  XC7A50T-1CSG324C
Logic Slices 15,850 (4 6-input LUTs & 8 flip flops each) 8,150 (4 6-input LUTs & 8 Flip flops each)
Block RAM 4,860 Kbits 2,700 Kbits
Clock Tiles 6 (each with PLL)  5 (each with PLL)
DSP Slices 240 120
Internal Clock 450 MHz+ 450 MHz+
DDR2 Memory 128MiB 128MiB
Cellular RAM 16MB 16MB

Specifications:

Programming: Vivado Design Suite as well as the ISE toolset

  • Xilinx Artix-7 FPGA XC7A100T-1CSG324C or XC7A50T-1CSG324C
  • 15,850 logic slices, each with four 6-input LUTs and 8 flip-flops (8,150 logic slices for the A7-50T)
  • 4,860 Kbits of fast block RAM  (2,700 Kbits for the A7-50T)
  • Six clock management tiles, each with phase-locked loop (PLL) (5 clock management tiles for the A7-50T)
  • 240 DSP slices (120 DSP slices for A7-50T)
  • Internal clock speeds exceeding 450 MHz
  • On-chip analog-to-digital converter (XADC)
  • 128 MiB DDR2
  • Serial Flash
  • Digilent USB-JTAG port for FPGA programming and communication
  • microSD card connector
  • Ships with rugged plastic case and USB cable
  • USB-UART Bridge
  • 10/100 Ethernet PHY
  • PWM audio output
  • 3-axis accelerometer
  • 16 user switches
  • 16 user LEDs
  • Two tri-color LEDs
  • PDM microphone
  • Temperature sensor
  • Two 4-digit 7-segment displays
  • USB HID Host for mice, keyboards and memory sticks
  • Pmod for XADC signals
  • 12-bit VGA output
  • Four Pmod ports



What's
Included:

  • Nexys A7 FPGA: choose from 100T or 50T variant
  • Digilent custom hardshell plastic case with protective foam
  • Micro USB cable
Part Number 410-292
Manufacturer Digilent
