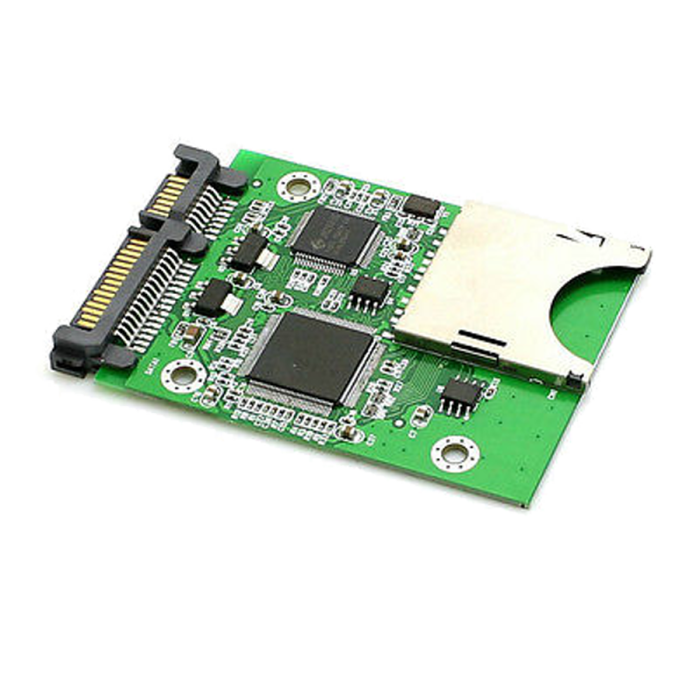

Digital MMC to SATA Converter Module
Specifications:
SD/MMC flash memory card be a super compact, cost efficient, anti-shock, low power consumption, no acoustic noise and fast access time HDD/SSD.
Enables IT engineers and embedded technology enthusiasts to use SD/MMC card as a normal SATA HDD/SSD.
Provides an alternative for data storage and transfer or test for motherboard & sound/display/memory card, etc.
Ideal for some devices that required a fast and easy bootable device such as POS.
Be a SD/MMC card reader/writer.
Compatible with SD Memory Card specification 1.1, MMC specification 2.0 & SDHC specification.
1) Supports up to 32GB SD card capacity.
2) Supports up to 22MB/sec data transfer rate.
3) One 7+15 Pin SATA male connector and one standard SD slot.
4) Bootable, install OS and application on SD card.
5) Supports OS including linux,Win98,WinXP,DOS
6) Easy installation and no driver required.
7) Board is fully assembled with 2 fixing holes.
Note: This adapter does not support hot-swap of CF cards, so please turn off power when changing cards.
Weight (KG) | 0.200000 |
---|
