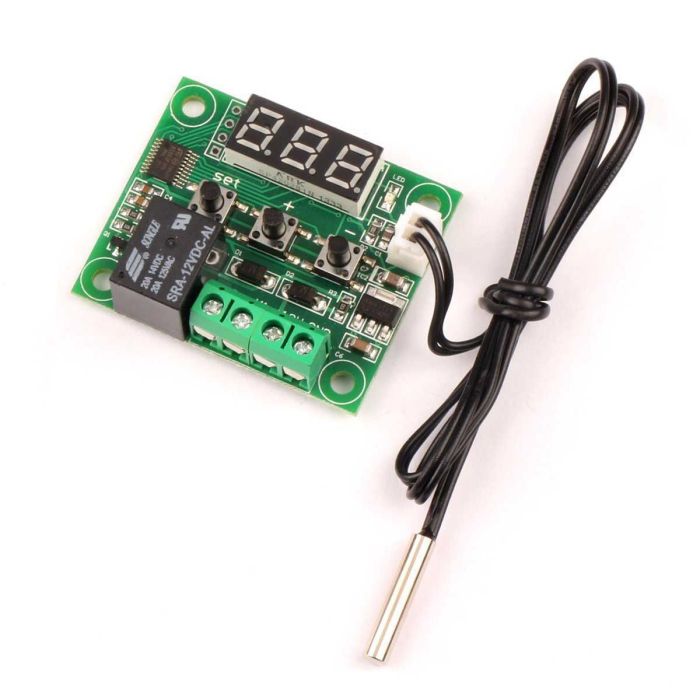

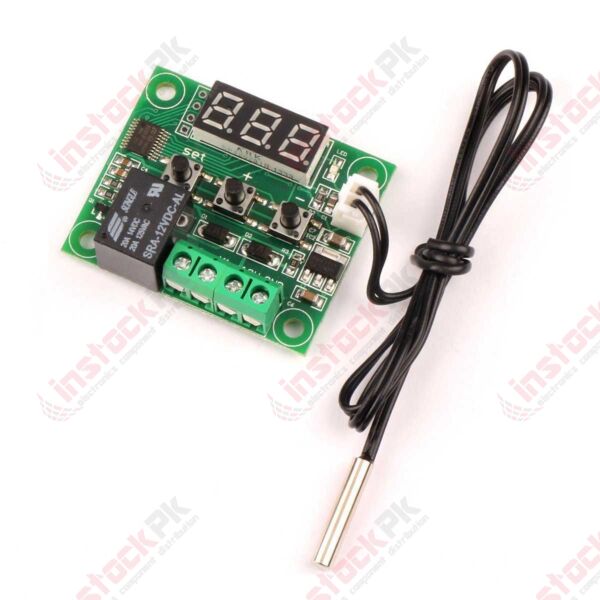

Digital Thermostat Temperature Control Module XH-W1209

SKU
MD-00423
PKR410.00
Quantity: 10
-
  • Buy 3 for PKR390.00 each and save 5%
  • Buy 10 for PKR375.00 each and save 9%
  • Buy 50 for PKR350.00 each and save 15%

-

SPECIFICATIONS:

  1. Resolution: 0.1°C(-9.9~99.9°C), 1°C(Other Ranges)
  2. Accuracy: 0.1°C
  3. Refresh Rate: 0.5s
  4. High Temperature Protection: 0~110°C
  5. Measurement Input: NTC(10K 0.5%) Waterproof Type Sensor
  6. Output Range: 1 Channel 10A Relay Output
  7. Humidity: 20%-85%
  8. Environment: -10~60°C,

HOW TO USE:

Connect the power supply and the load, then you can supply to the controller.

It displays the measured temperature, press SET key, the display temperature flashing, press"+" "-" to set the desired temperature. After finished, press SET to confirm and back.Now the controller automatically performs the relay by setting off. This temperature controller output is 10A relay, meeting various high-power loads, please make sure the wires are connected correctly.

 Indicator, LED State Instruction:

Indicator: OFF indicates the relay is switched off; ALWAYS indicates the relay is closed.

LED: shows LL means the sensor opens; shows HH means it's out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection

FUNCTIONAL DIAGRAM

PIN CONFIGURATIONS:

Pin configurations

RELATED VIDEO:

PACKAGE INCLUDES:

  1. 1 X -
Part Number NA
Weight (KG) 0.021000
Manufacturer Made in China
Voltage (Min) NA
Voltage (Max) 12V
Output Voltage NA
Power NA
Current (A) 30m
Frequency NA
Load Cell (kg) NA
Output Type NA
Range NA
Temperature Range (Min) -50°C
Temperature Range (Max) 110°C
Operating System NA
Resistance Value (Ohm) NA
Baud Rate NA
Interface NA
Num of Pin's NA
Diameter NA
Size (mm) 48 X 40mm
