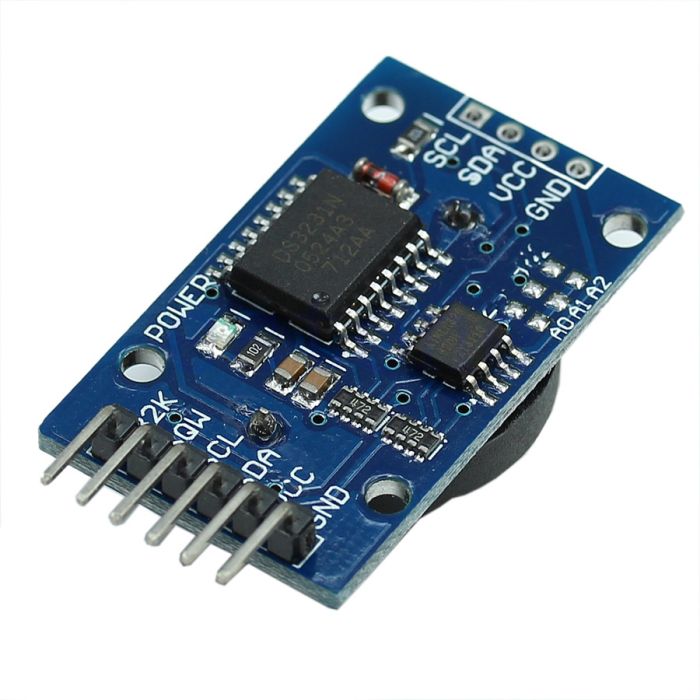

High Precision Real-Time Clock (RTC) Module - Blue (3.3~5.5V) DS3231

SKU
MD-00062
PKR750.00
Quantity: 7

DS3231 also has some other features that extend the system host of additional features and a range of options. The device integrates a very precise digital temperature sensor, through the I2C * interface to access it (as the same time).

  • Buy 3 for PKR712.50 each and save 5%
  • Buy 10 for PKR690.00 each and save 8%

DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, disconnect the main power supply and maintains accurate timekeeping. Integrated oscillator improve long-term accuracy of the device and reduces the number of components of the production line. The DS3231 is available in commercial and industrial temperature ranges, using a 16-pin 300mil SO package.

RTC maintains seconds, minutes, hours, day, date, month, and year information. Less than 31 days of the month, the end date will be automatically adjusted, including corrections for leap year. The clock operates in either the 24 hours or band / AM / PM indication of the 12-hour format. Provides two configurable alarm clock and a calendar can be set to a square wave output. Address and data are transferred serially through an I2C bidirectional bus.

A precision temperature-compensated voltage reference and comparator circuit monitors the status of VCC to detect power failures, provide a reset output, and if necessary, automatically switch to the backup power supply. In addition, / RST pin is monitored as generating μP reset manually.

SPECIFICATIONS:

  1. Size: 38mm (length) * 22mm (W) * 14mm (height)
  2. Weight: 8g
  3. Operating voltage :3.3 - 5 .5 V
  4. Clock chip: high-precision clock chip DS3231
  5. Clock Accuracy :0-40 ℃ range, the accuracy 2ppm, the error was about 1 minute
  6. Calendar alarm clock with two
  7. Programmable square-wave output
  8. Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation
  9. Chip temperature sensor comes with an accuracy of ± 3 ℃
  10. Memory chips: AT24C32 (storage capacity 32K)
  11. lIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V)
  12. Can be cascaded with other IIC device, 24C32 addresses can be shorted A0/A1/A2 modify default address is 0x57
  13. With rechargeable battery LIR2032, to ensure the system after power failure, the clock move any natural normal
  14. Packing: single anti-static packaging

PACKAGE INCLUDES:

  1.  1 X DS3231 High Precision Real-Time Clock (RTC) Module - Blue (3.3~5.5V)
Part Number DS3231
Product Availability In Stock
Weight (KG) 0.008000
