DUE ATSAM3X8E Microcontroller ARM Cortex M3 Development Board

SKU
MD-00066
PKR 7,600.00
In stock

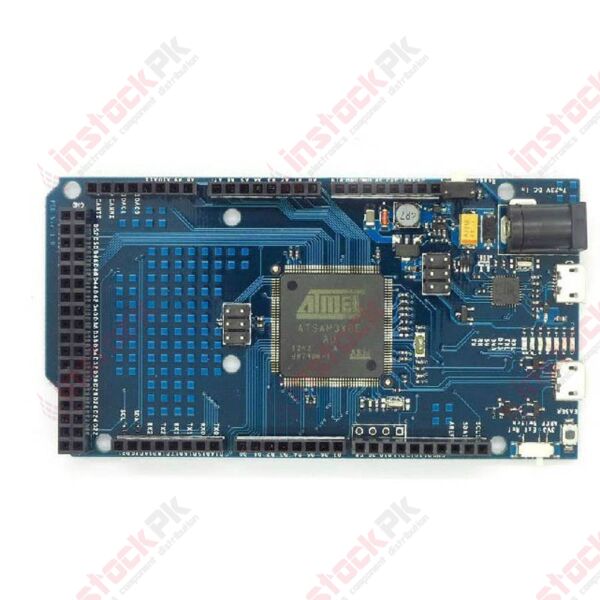

The Iteaduino DUE is a microcontroller board based on the Atmel SAM3X8E ARM Crotex-M3 core. It is the improvement board based on the Ardui-no DUE. It has 54 digital IO pins 12 analog inputs 4 UARTs a 84MHz clock an USB OTG capable connection 2 DACs 2 IIC a power jack an SPI header a reset button and an erase button.

The Iteaduino DUE is a microcontroller board based on the Atmel SAM3X8E ARM Crotex-M3 core. It is the improvement board based on the Ardui-no DUE. It has 54 digital IO pins 12 analog inputs 4 UARTs a 84MHz clock an USB OTG capable connection 2 DACs 2 IIC a power jack an SPI header a reset button and an erase button. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all Ardui-no compatible shields that work at 3.3V and are compliant with the 1.0 Ardui-no compatible pinout.

The IOREF pin which allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V. An unconnected pin reserved for future use.

The Due has a 32-bit ARM core that can outperform typical 8-bit microcontroller boards. The most significant differences are: A 32-bit core that allows operations on 4 bytes wide data within a single CPU clock.

Features:

  1. CPU Clock at 84Mhz.
  2. 96 KBytes of SRAM.
  3. 512 KBytes of Flash memory for code.
  4. A DMA controller that can relieve the CPU from doing memory intensive tasks.

Specifications:

  1. Microcontroller:AT91SAM3X8E
  2. Operating Voltage:3.3V
  3. POWER SupplyVoltage(recommanded): 7~24V
  4. Power supply Max Voltage:26V
  5. Digital IO pins:54(of which 12 provide PWM output)
  6. Analog Input pins(ADC):12
  7. Analog Output pins(DAC):2
  8. Total DC Output current on all IO lines:130mA
  9. DC current of 3.3V:800mA
  10. DC current of 5V:800mA
  11. Flash Memory:512KB all available for user application
  12. SRAM:96KB(2 banks:64KB and 32KB)
  13. Clock frequency:84MHz
Note: Unlike other Iteadduino boards the Iteaduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages like 5V to an I/O pin could damage the board.
