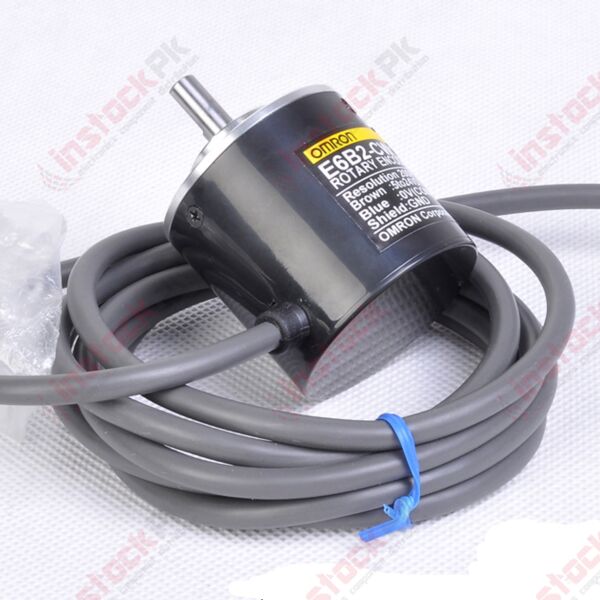

Omron Rotary Encoder E6B2-CWZ3E (200/360/1024P/R)

SPECIFICATIONS:

1. Power supply voltage:5 VDC −5% to 12 VDC +10%, ripple (p-p): 5% max.
2. Current Consumption :100 mA max.
3. Resolution(pulses/rotation):10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 720, 800,1,000, 1,024, 1,200, 1,500, 1,800, 2,000
4. Output phases:Phases A, B, and Z
5. Output configuration:Voltage output (NPN output)
6. Maximum response frequency:100 kHz
7. Rise and fall times of output:1 μs max.
8. Starting torque: 10 mN·m max.
9. Moment of inertia:1×10−6 kg·m2 max.; 3 × 10−7 kg·m2 max. at 600 P/R max.
10. Protection circuits:Power supply reverse polarity protection, Load short-circuit protection ---
11. Ambient temperature Range Operating: −10 to 70°C (with no icing), Storage: −25 to 85°C (with no icing)
12. Ambient humidity Range Operating/Storage: 35% to 85% (with no condensation)
13. Material Case: Zinc alloy, Main unit: Aluminum, Shaft
14. Weight(packed state) Approx. 400 g
