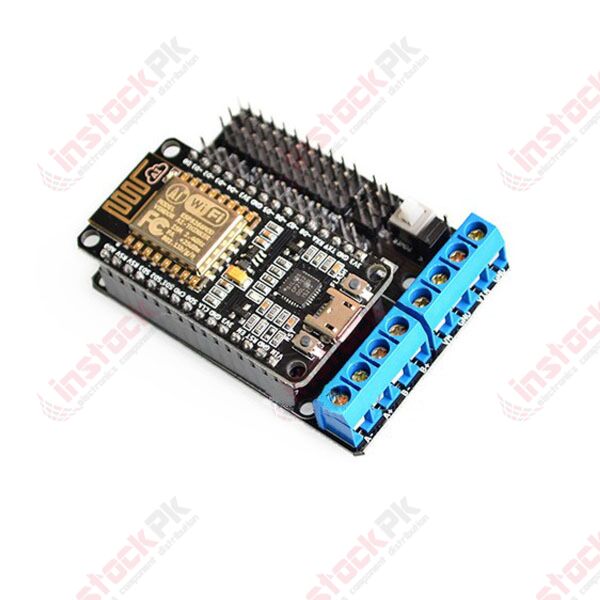

Lua WiFi Development Kit (ESP-12E)

SKU
MD-00276
-11%
Special Price PKR1,650.00 was PKR1,850.00
Quantity: 3
This is the first motor shield for ESP8266 based on ESP-12E.It is very convenient and cheap to DIY a WiFi RC smart car or any type of robotics or UAV platform.

 This is the first motor shield for ESP8266 based on ESP-12E.It is very convenient and cheap to DIY a WiFi RC smart car or any type of robotics or UAV platform.

FEATURES:

  1. All leads ESP12 DEV KIT-function pins: SPI, UART, GPIO, AI and 3.3V power connector;
  2. Expand two-way motor-driven, two-way direct drive motor
  3. Onboard power switch.
  4. Motor Power (VM): 4.5V ~ 36V, can be a separate power supply
  5. Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately;
  6. Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) simultaneously drive and control the motor;
  7. Logic Operating current Iss: 60mA (Vi = L), 22mA (Vi = H);
  8. Drive part of the work current Io: 1.2A;
  9. Maximum power dissipation: 4W (T = 90 )
  10. Control signal input level: High: 2.3VVIHVIN; Low: -0.3VVIL1.5V
  11. Working temperature: -25 ~ + 125
  12. Drive Type: Dual high-power H-bridge driver
  13. ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)

PIN CONFIGURATIONS:

Pin configurations



PACKAGE INCLUDES:

  1. 1 X Lua WiFi Development Kit (ESP-12E).
Weight (KG) 0.050000
Manufacturer Made in China
Voltage (Min) 4.3V
Voltage (Max) 9V
Output Voltage NA
Power 4W (T = 90 )
Current (A) 2
Frequency NA
Output Type DC
Range NA
Temperature Range (Min) -25°C
Temperature Range (Max) 125°C
Operating System NA
Num of Pin's NA
Size (mm) NA
