EZ-Robot - JD Humanoid Robot

More Views

EZ-Robot - JD Humanoid Robot
SKU: MD-01282
PKR 115,000.00

Availability: Preorder, Delivery in 15-20 Days



  • Fully functional humanoid robot built with EZ-Bits

  • Boasts 16 degrees of freedom with 16 heavy duty servos

  • Camera for vision tracking modes and contains 9 LEDs per eye

  • Apps to allow him to walk right away


Description

Details

Description

  • Fully functional humanoid robot built with EZ-Bits
  • Boasts 16 degrees of freedom with 16 heavy duty servos
  • Camera for vision tracking modes and contains 9 LEDs per eye
  • Apps to allow him to walk, right away

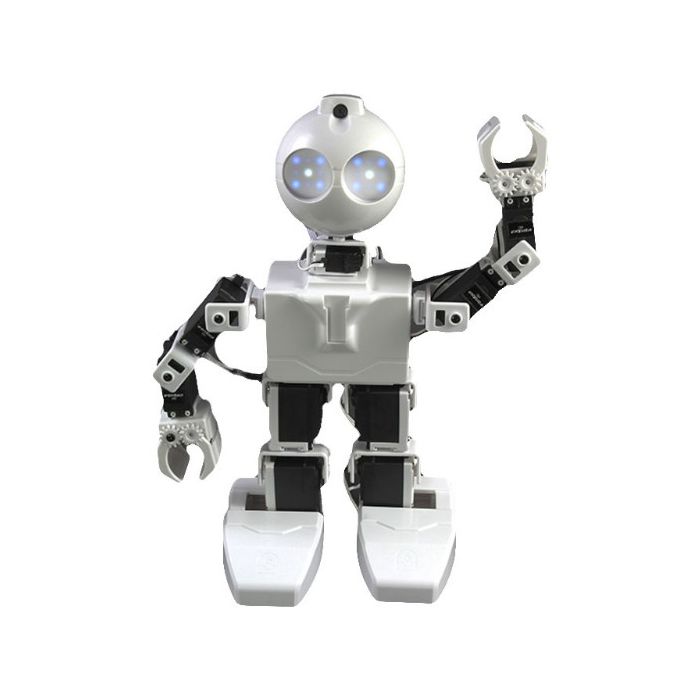

The EZ-Robot JD Humanoid Robot is a fully functional humanoid robot built with EZ-Bits. This humanoid boasts 16 degrees of freedom with metal gear heavy duty servo motors. The head of this robot contains a camera for vision tracking modes, including color, motion, glyphs, QR codes and faces. The eyes of this robot have 18 LEDs (9 per eye). Each LED can be configured up to 1 million color combinations. The compact grippers are powered by strong metal geared servo motors. JD includes apps that allows him to walk, right away. Includes digital heavy duty 15 kg/cm servo motors. The metal gear and ball bearing internals will withstand a high load.

EZ-Robot JD Humanoid Robot- Click to Enlarge

High Tech Brain
The EZ-B v4 is not only the brain of your EZ-Robot, it is also the World's most powerful and compact robot brain. The EZ-B v4 scales for beginner and advanced users. The EZ-B is two PCB's sandwiched together in a compact 2x2 inch package. For advanced users, the EZ-B may be removed from its casing and mounted directly in your custom robot.

EZ-Robot JD Humanoid Robot- Click to Enlarge

Easy-to-use Software
Your EZ-Robot is controlled by the world's easiest, most powerful and scalable robot software. EZ-Builder takes a productive and unique approach to programming your robot. Simply add behaviors such as Camera Tracking, Speech Recognition, Wii Controller, GPS, GAIT Positioning and hundreds more.

EZ-Robot JD Humanoid Robot- Click to Enlarge

Specifications

Servo Motor

  • Operating speed: 0.24sec/60degree (7.4V)
  • Stall torque: 15.0kg-cm/529 oz-in.(7.4V)
  • Operating Voltage: 4.8V to 7.4V

What's Included

  • 1 x EZ-B v4/2 Wi-Fi Robot Controller
  • 1 x EZ-Builder Control Software with Apps
  • 1 x Humanoid Head with Camera & RGB Eyes
  • 1 x Humanoid Body (includes battery)
  • 6 x Lever Servo-motor
  • 2 x Servo-motor Gripper
  • 1 x Humanoid 2 Servo-motor Foot & Ankle (Left)
  • 1 x Humanoid 2 Servo-motor Foot & Ankle (Right)
  • 1 x LiPo Robot Battery 7.4v 1300mAh
  • 1 x LiPo Battery Balancer Charger
  • 2 x Wire Spiral Wrap (6" length)
Additional Information

Additional Information

Part Number RB-Ezr-07
Manufacturer EZ-Robot
Weight (g) 1350.0000
