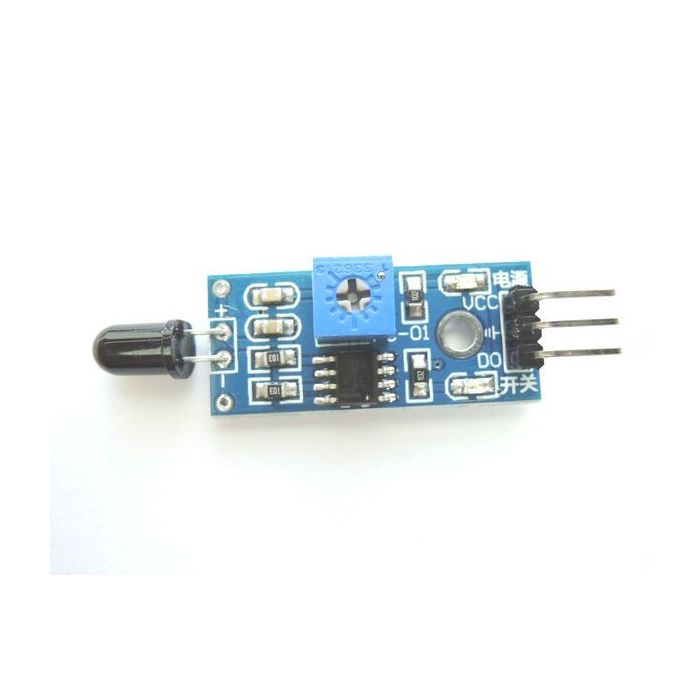

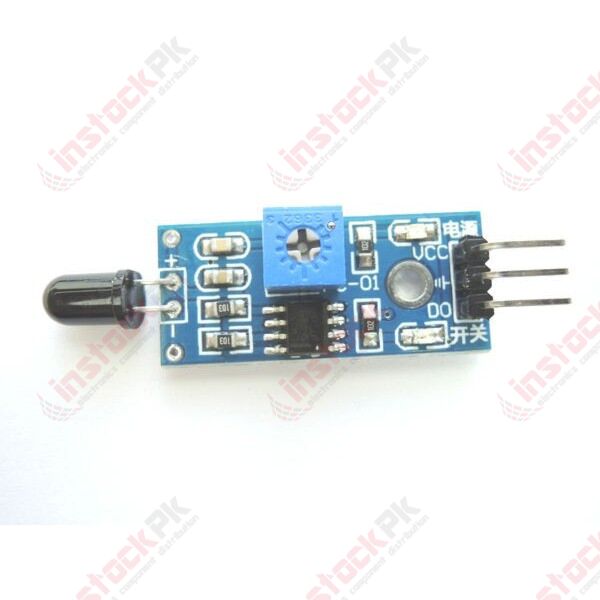

IR Flame Fire Sensor Module J35 LM393 (760nm-1100nm)

More Views

IR Flame Fire Sensor Module J35 LM393 (760nm-1100nm)
SKU: SM-00020

Regular Price: PKR 220.00

Special Price PKR 160.00

  • Buy 3 for PKR 145.00 each and save 10%
  • Buy 10 for PKR 135.00 each and save 16%
  • Buy 50 for PKR 110.00 each and save 32%

Availability: In stock

The VCC external 5V voltage, GND with an external GND, DO small board digital output interfaces (0 and 1), AO small board analog output interface.

Wavelength: 760nm-1100nm

Description

Details

The VCC external 5V voltage, GND with an external GND, DO small board digital output interfaces (0 and 1), AO small board analog output interface. Comparator chip LM393 ,it is stable. Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm, Detection angle about 60 degrees, it is sensitive to the flame spectrum. This module is sensitive to the flame, but aslo can detect ordinary light. Usually used as a flame alarm. On board, digital output interface can be directly connected with the microcontroller IO. Please keep a distance with flame,high temperature maybe burn out the sensor module.
Specifications: 1) Comparator chip LM393 ,it is stable.
2) Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm
3) Detection angle about 60 degrees, it is sensitive to the flame spectrum.
4) Accuracy adjustable
5) Operating voltage 3.3V-5V
6) DO digital switch outputs (0 and 1)
7) power indicator and digital switch output indicator
8) With a mounting screw hole
Pin Configurations:
1) VCC -- 3.3V-5V voltage
2) GND -- GND
3) DO -- board digital output interface (0 and 1)
Additional Information

Additional Information

Part Number No
Manufacturer Made in China
Weight (g) 40.0000
