GaMicos - Capacitive Fuel Level Sensor GLTV7S with Auto Calibration

More Views

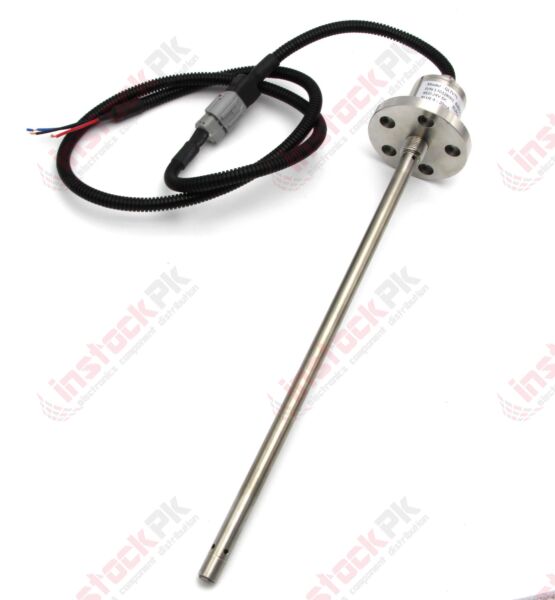

GaMicos - Capacitive Fuel Level Sensor GLTV7S with Auto Calibration
SKU: MD-01251
PKR 17,800.00
  • Buy 3 for PKR 17,350.00 each and save 3%
  • Buy 10 for PKR 16,700.00 each and save 7%

Availability: Preorder, Delivery in 15-20 Days

Capacitive Fuel Level Sensor GLTV2A (4-20mA)
Description

Details

GLTV2A fuel level sensor can detect fuel level continuously. And The resolution is less than 1mm. GLTV2A can be cut the length to fit the height of fuel tank. Simply flanged installation that no need extra screws. Wide voltage input to make sure no voltage limits under any situation.

FEATURES:

  1. It can be cut according to the height of fuel tank.
  2. Integrated structure without any elastic elements, also support various signal output.
  3. Push-button field calibration, it’s very convenient.
  4. Wide Power voltage input.

SPECIFICATIONS:

  1. Collection principle: Capacitance
  2. Level range: 100mm-700mm
  3. Input DC:4—70V
  4. Power Consumption: 0.13W/5V,   0.19W/12V,  0.38W/24V
  5. Voltage output: 0—5V
  6. Digital output: RS-232 \RS-485
  7. Analog resistant output:10—500Ω
  8. Current output: 4—20mA
  9. Flange Outer Diameter: 2.9 Inch
  10. Communication baud rate: 2400,4800,9600,57600,115200
  11. Detection of liquid type: Diesel, bio diesel, kerosene, gasoline, etc.
  12. Work temperature: -40~+85
  13. Save temperature: -40~+105
  14. Material: Aluminum alloy
  15. Protection class: IP67
  16. Resolution: 1mm
  17. Accuracy: ±0.5%

PIN CONFIGURATIONS:

  1. A/R: current/resistance output
  2. Vo: Voltage output
  3. RX: RS232 receiving
  4. TX: RS232 sending
  5. V-: Power input: GND
  6. V+: Power input: Positive

pin Configuration Diagram

PACKAGE INCLUDES:

  1. 1 X Capacitive Fuel Level Sensor GLTV7S (4-20mA)
Additional Information

Additional Information

Weight (g) 100.0000
Manufacturer GWIntsek
Model GLTV7A
Voltage (V) 4~70
Output Voltage 0~5V
Power 0.13W/5V, 0.19W/12V, 0.38W/24V
Current (A) 4~20m
Material Aluminum Alloy
Temperature Range (Min) -40°C
Temperature Range (Max) 85°C
Level Range 100mm to 1500mm
Digital Output RS-232 \RS-485
Analog Resistant Output 10—500Ω
Resolution 1mm
Communication Baud Rate 2400,4800,9600,57600,115200
