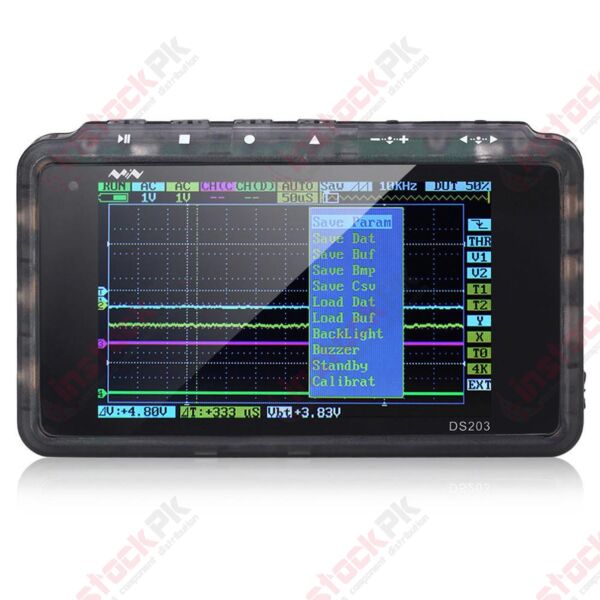

Handheld Mini Digital Oscilloscope 4 Channel DSO203

SKU
MD-01047
PKR29,500.00
Quantity: 0
DS203 is a pocket size 4-channel digital storage oscilloscope for common electronic engineering tasks. It also provides 4 application areas, convenient for users to load and upgrade at most 4 different application firmware.
  • Buy 2 for PKR28,025.00 each and save 5%

DS203 is a pocket size 4-channel digital storage oscilloscope for common electronic engineering tasks. It also provides 4 application areas, convenient for users to load and upgrade at most 4 different application firmware.

  • Two 72Mhz analog channels and two digital channels
  • AD9288-40 dual A/D converter analogue channels from 36MS/s to 72MS/s.
  • Signal Generator, auto measurement, various triggering option
  • Easy waveform storage, firmware upgrade, user applications, open source
  • Built-in 8M USB disk



Technical Datasheet
WHAT'S IN THE PACKAGE
  • 1 x SainSmart DSO203/Quad with battery
  • 2 x mcx Oscilloscope probes
Part Number DSO203
Weight (KG) 0.100000
Manufacturer SainSmart
Maximum Input Voltage 80 Vpp (x2 probe)
Input Coupling AC / DC
Input Impedance NA
Probe Attenuation NA
Sampling Mode Real Time
Sampling Rate 1KSa/s - 72MSa/S
Storage Depth 4K per Channel (Internal 8MB USB Disk)
Acquire Mode NA
Average Time NA
Channel Amount 4
Bandwidth NA
Vertical Resolution 8 Bit
Vertical Coupling NA 1. Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
Hold-off Range NA
Edge Trigger NA
Reading Resolution Ratio NA
Display Resolution (Pixels) NA
Contrast Ratio NA
Power Supply NA
Power Li-ion Battery
Frequency NA
Background Intensity (typical) NA
Waveform Display Range NA
Afterglow NA
Menu display NA
Screen Saver NA
Interpolation Mode NA
Screen Color Mode NA
Display Language NA
Temperature Range (Min) NA
Temperature Range (Max) NA
Humidity NA
