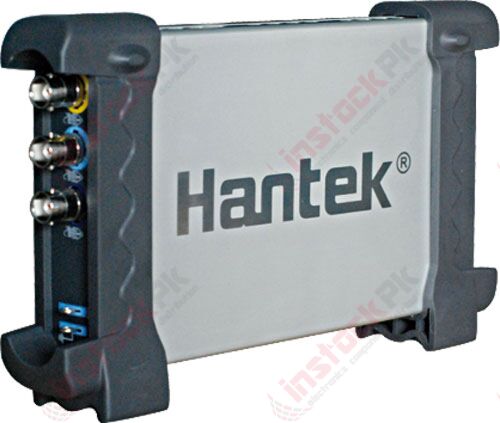

Hantek - PC Based USB Digital Storage Oscilloscope Dual Channel HT6052BE (50MHz)

SKU
MD-01125
PKR54,500.00
Quantity: 1
Bandwidth: 50MHz, Sample Rate: 150MS/s; Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.
  • Buy 2 for PKR51,775.00 each and save 5%
  • Buy 5 for PKR50,140.00 each and save 8%

1. Characteristic


Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXI TM interface, easily inserts into USBXI TM housing to make up a combination instrument.
USB2.0 interface, no external power source required, easy to use.
Be suitable for notebook computer, product line maintenance,be used easily on business.
Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
High performance, 150MS/s real-time sampling, 50MHz Bandwidth,
Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.
23 measurement functions, PASS/FAIL Check, be suitable for technical application.
Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
FFT
One computer can connect many DSO, extend channel easily.
Labview\VB\VC Builder Second Design instance.
2. Hardware Specification
Channel 2 Channels
Bandwidth 50MHz
Input Impedance 1MΩ 25pF
Max. Sample rate 150MS/s
Coupling AC/DC/GND
Vertical resolution 8Bit
Gain range 10mV-5V, 9Steps
DC accuracy ±3%
Timebase range 4ns-1h, 38 Steps
Vertical adjustable Yes
Input protection Diode clamping
X-Y Yes
Autoset Yes (30Hz to 50MHz)
EXT. input Yes
Trigger Mode Auto, Normal and Single
Trigger Slope +/-
Trigger level adjustable Yes
Trigger Type Rising edge, falling edge
Trigger Source CH1, CH2, EXT
Pre/Post trigger 0-100%
Buffer size 10K-64KB/Channel
Sampling selection Yes
Waveform Display port/line, waveform average, persistence, intensity
Network Open/Close
Vertical mode CH1, CH2, Dual, ADD
Cursor measurement Yes
Math FFT, addition, subtraction, multiplication, division.
Cursor Frequency, Voltage
Data Samples 10K-64K/Channel
Accessories S/W CD, probes, manual, USB cord
3.Software
Operating system: Windows 7, Windows NT, Windows 2000,Windows XP, VISTA
4.Second Design
Supply DEMO code(VC, VB, LABVIEW) and technical support.

5.Accessories:





6.Other Pictures:






Part Number HT6052BE
Manufacturer Hantek
Weight (KG) 0.250000
Bandwidth 50MHz
Input Impedance 1MΩ 25pF
Sampling Rate Max: 150MS/s
Vertical Resolution 8Bit
Product Availability In Stock
