Hantek - PC Based Digital Oscilloscope Dual Channel (20MHz) - HT6022BE

SKU
MD-00524
PKR27,200.00
Quantity: 0

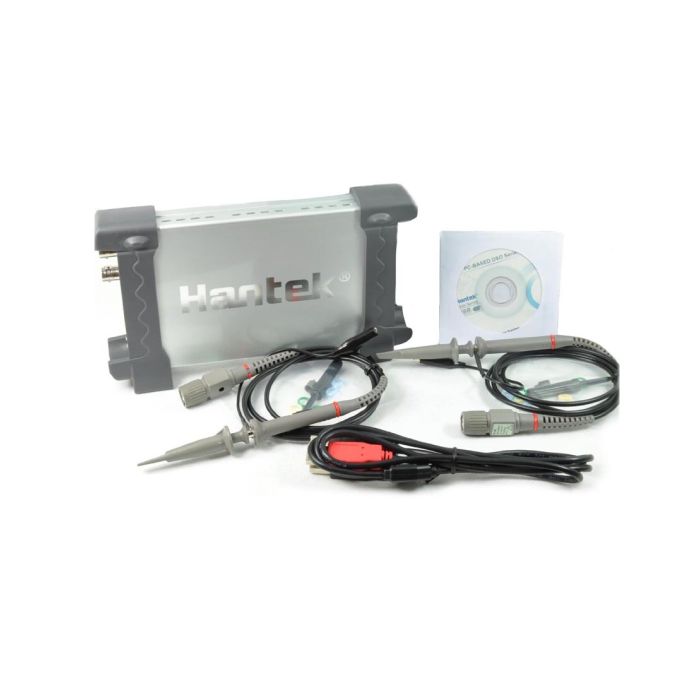

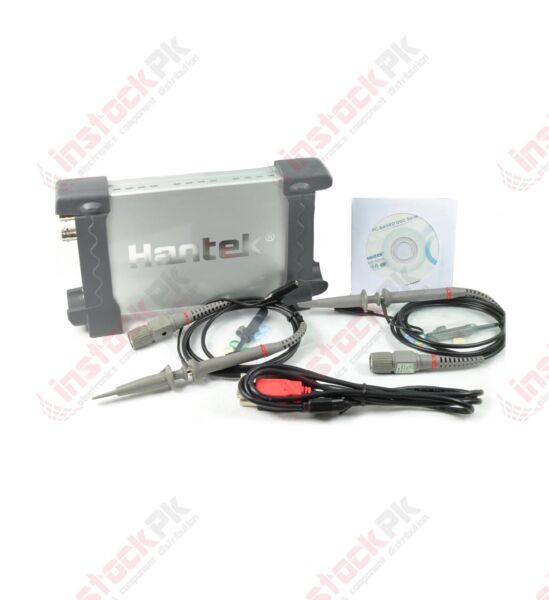

Hantek PC Based USB Digital Storage Oscilloscope HT6022BE (20MHz)
  • Buy 2 for PKR25,840.00 each and save 5%
  • Buy 5 for PKR25,024.00 each and save 8%

FEATURES:

  1. Excellent industrial design-the same anodized aluminum casing as iPod, Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
  2. USB2.0 interface, no external power source required, easy to use.
  3. Be suitable for notebook computer, product line maintenance, be used easily on business.
  4. Operating System: Windows 8, Windows NT, Windows 2000, Windows XP, VISTA.
  5. 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
  6. Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
  7. Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
  8. One computer can connect many DSO, extend channel easily.
  9. Labview\VB\VC Second Design instance.

SPECIFICATIONS:

Model

Hantek 6022BE

Channel

2 Channels

Bandwidth

20MHz

Input Impedance

1MΩ 25pF

Coupling

DC

Max. Sample rate

48MSa/s

Vertical resolution

8Bit

DC accuracy

±3%

Vertical adjustable

Yes

Input protection

Diode clamping

X-Y

Yes

Trigger Mode

Auto, Normal and Single

Trigger Slope

+/-

Trigger level adjustable

Yes

Trigger Type

Yes

Trigger Source

CH1, CH2

Pre/Post trigger

0-100%

Sampling selection

Yes

Waveform Display

port/line, waveform average, persistence, intensity

Network

Open/Close

Vertical mode

CH1, CH2, Dual,

Cursor measurement

Yes

Math

FFT, addition, subtraction, multiplication, division.

Cursor

Frequency, Voltage

Accessories

S/W CD, probes, manual, USB cord

OUTPUT DIAGRAMS:

The build in reference waveform with both channels.



2. The triangular wave at around 57khz



3. The triangular wave (yellow) fed into an OpAmp (green), and using the math to have CH1 - CH2 (blue).



4: The ring (not the movie…)


Attachment 5: Measuring the frequency at this magnification, the 400uH calculates to be 370uH


Attachment 6: Zoom in more.  (Showing you 6022BE’s smaller division) With smaller t/div the measured frequency is more accurate.  This time, the 400uH is calculated to be 385uH.



7. See the LM2577’s output pin:  The LM2577 is set to max at just around 23-27Volt.


8. A closer look into just one cycle of the LM2577’s output.


9. This is a vertical+horizontal cursor.  The machine supports 3 types of cursor: Vertical, horizontal, or H+V.  (Note also: when zooming in, the display shows the capture rate IF you run it at that time/div BUT NOT the actual time/div when the data was captured.)  With the close zoom, I saw that there was only 1 single data point during the rise!  Including the data point before and after, the whole rise took 3 data points only.  So an even closer inspection was done later.  When including the before/after data point, the measurement (141ns) is an “upper bound”.


10. For a better measurement of the rise time, switch to the highest capture rate.



PACKAGE INCLUDES:

  1.  1 X Hantek PC Based USB Digital Storage Oscilloscope HT6022BE (20MHz)
  2. 2 X Oscilloscope Probe
  3. 1 X USB Cable
  4. 1 X CD (Manual etc.)
Part Number HT6022BE
Manufacturer Hantek
Weight (KG) 0.750000
Packing Unit 1pc
Product Availability In Stock
