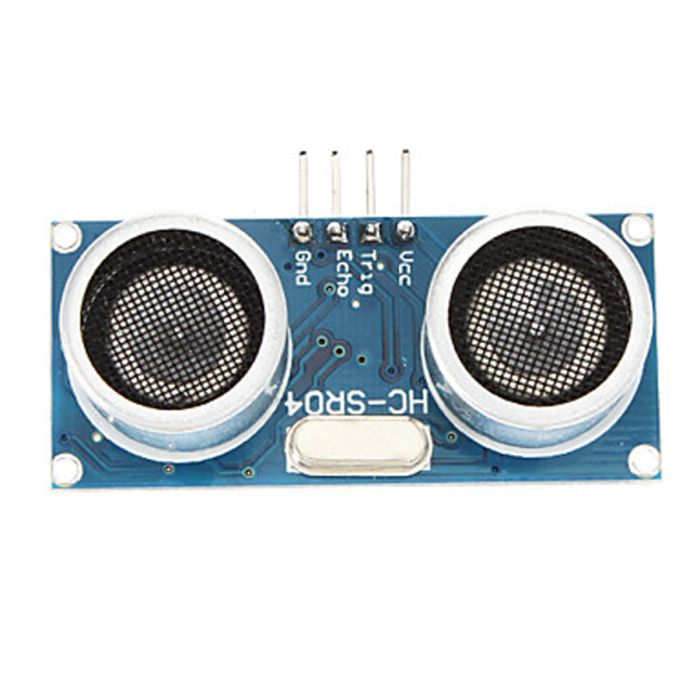

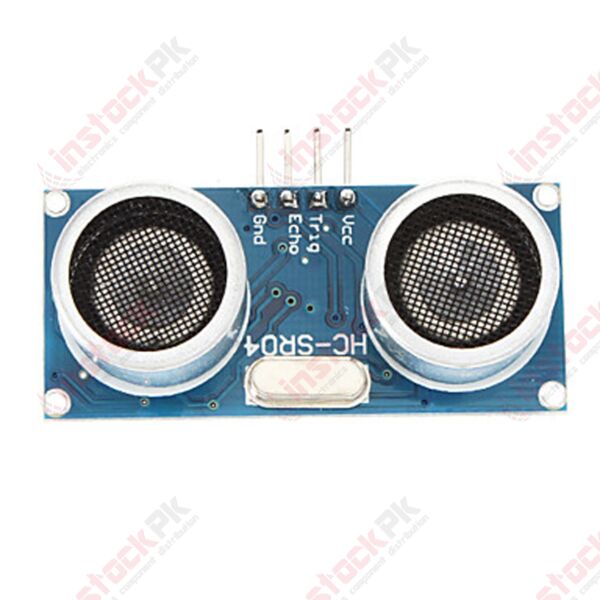

Ultrasonic Distance Measuring Sensor Module HC-SR04

More Views

Ultrasonic Distance Measuring Sensor Module HC-SR04
SKU: SM-00010

Regular Price: PKR 180.00

Special Price PKR 170.00

  • Buy 3 for PKR 160.00 each and save 6%
  • Buy 10 for PKR 152.00 each and save 11%
  • Buy 25 for PKR 145.00 each and save 15%
  • Buy 100 for PKR 135.00 each and save 21%

Availability: In stock

The HC-SR04 ultrasonic sensor uses sonar to determine distance to an object like bats or dolphins do. It offers excellent non-contact range detection with high accuracy and stable readings in an easy-to-use package. From 2cm to 400 cm or 1” to 13 feet. It operation is not affected by sunlight or black material like Sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect). It comes complete with ultrasonic transmitter and receiver module.
Description

Details

The HC-SR04 ultrasonic sensor uses sonar to determine distance to an object like bats or dolphins do. It offers excellent non-contact range detection with high accuracy and stable readings in an easy-to-use package. From 2cm to 400 cm or 1” to 13 feet. It operation is not affected by sunlight or black material like Sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect). It comes complete with ultrasonic transmitter and receiver module.

FEATURES:

  1. Power Supply :+5V DC
  2. Quiescent Current : <2mA
  3. Working Currnt: 15mA
  4. Effectual Angle: <15°
  5. Ranging Distance : 2cm – 400 cm/1" - 13ft
  6. Resolution : 0.3 cm
  7. Measuring Angle: 30 degree
  8. Trigger Input Pulse width: 10uS
  9. Dimension: 45mm x 20mm x 15mm

PACKAGE INCLUDES:

  1.  1 X Ultrasonic Distance Measuring Sensor Module HC-SR04

Additional Information

Additional Information

Part Number HC-SR04
Manufacturer Made in China
Weight (g) 10.0000
