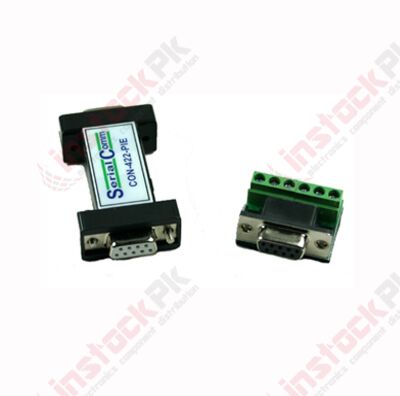

Industrial RS232 TO RS422 Converter Module CON-422-PIE

The SerialComm CON-422-PIE is a very high quality and very reliable compact industrial-grade bi-directional port-powered RS-232 to RS-422 converter which converts full-duplex RS-232 to a half-duplex two-wire RS-422. The converter can extend the distance of the RS232 for up to 4000 ft (1.2km).  This converter is ideal for any demanding application whether indoor in a lab, server room, office, at home or outdoors within the temperature range of -40ºF to 185ºF (-40ºC to 85ºC). The converter is port-powered and derives power by amplifying the RS232 data lines requiring no external power at all but also have the option to add external 5V power. This converter features auto sensing data turnaround eliminating the need for software drivers or handshake flow control.  The CON-422-PIE has a DB-9 female connector on the RS-232 end, and DB-9 male connector on the RS-485 end. A separate terminal block with no exposed jumpers is included with purchase. The terminal block plugs into the RS-422 end of the converter, providing screw-lug wire terminations for the port.

FEATURES:

  1. Plug-and-Play (hot-pluggable)
  2. Includes terminal block with no exposed jumpers
  3. Flexible DB-9 cable or screw down wire installation
  4. Operates from 300 to 115.2K baud
  5. Port powered - no external power needed
  6. Data direction auto-turnaround - no software is necessary
  7. Built-in 600W/sec surge protection
  8. Built-in 15KV static protection
  9. 5 year manufacturer’s warranty
  10. RoHS, CE and FCC certified
  11. Manufactured to ISO-9001 standards

SPECIFICATIONS:

  1. STANDARDS: EIA/TIA RS-232C Standard and RS-422 Standard
  2. BAUD RATES: From 300 Baud To 115,200 Baud
  3. CONNECTOR TYPES: RS-232 Side: DB9 Female and RS-422 Side: either DB9 Male or 6-way Terminal Block
  4. DISTANCE: RS-232 Side: 16 ft (5m) and RS-422 Side: up to 4000 ft (1.2km)
  5. MAX # OF CONNECTIONS: 128 Connection Drops
  6. POWER SOURCE: Port Powered From RS-232 Data Lines
  7. CURRENT CONSUMPTION: Less Than 10 mA
  8. STATIC PROTECTION: 15KV Electric Static Discharge (ESD) Protection
  9. SURGE PROTECTION: 600W/Sec Surge Protection
  10. CONVERSION IC: Exar SP491EEN
  11. HOUSING: Rugged ABS
  12. DIMENSIONS: With Terminal Block: 3.15 X 1.33 X 0.73 in (80.0 X 33.8 X 18.6 mm)
  13. OPERATING TEMP.: -40ºF to 185ºF (-40ºC to 85ºC)
  14. OPERATING HUMIDITY: 5% To 95% - No Condensation

 RELATED DOCUMENTS:

  1. Datasheet.

APPLICATIONS:

  1. Extending The RS232 Data Distance - Port Powered Mode
  2. Master / Slave Multi-Drop Configuration Port Powered Mode
  3. Extending The RS232 Data Distance - 5V Powered Mode
  4. Master / Slave Multi-Drop Configuration 5V Powered Mode

PACKAGE iNCLUDES:

  1. 1 X Industrial RS232 TO RS422 Converter Module CON-422-PIE
Part Number NA
Weight (KG) 0.020000
Manufacturer Made in USA
Voltage (Min) NA
Voltage (Max) 5V
Output Voltage NA
Power NA
Current (A) 10m
Frequency NA
Load Cell (kg) NA
Output Type Digital
Range RS-232 Side: 16 ft (5m) and RS-422 Side: up to 4000 ft (1.2km)
Temperature Range (Min) -40°C
Temperature Range (Max) 175°C
Operating System NA
Resistance Value (Ohm) NA
Baud Rate From 300 Baud To 115,200 Baud
Interface RS-232 Side: DB9 Female and RS-422 Side: either DB9 Male or 6-way Terminal Block
Num of Pin's NA
Diameter NA
Size (mm) 80.0 X 33.8 X 18.6 mm
