Inhaos - DUE CORE SAM3X8E 32-bit ARM Cortex-M3 Module
SKU: MD-01148
PKR 3,950.00
  • Buy 3 for PKR 3,720.00 each and save 6%
  • Buy 10 for PKR 3,600.00 each and save 9%

Availability: In stock

The Arduino Due is a micro-controller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM Cortex-M3 core micro-controller.
Description

Details

Summary


    The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM Cortex-M3 core microcontroller.

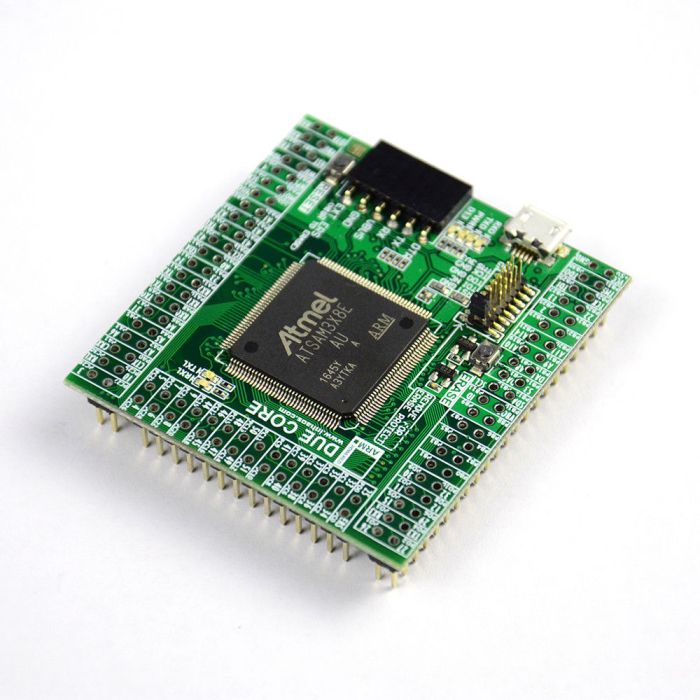

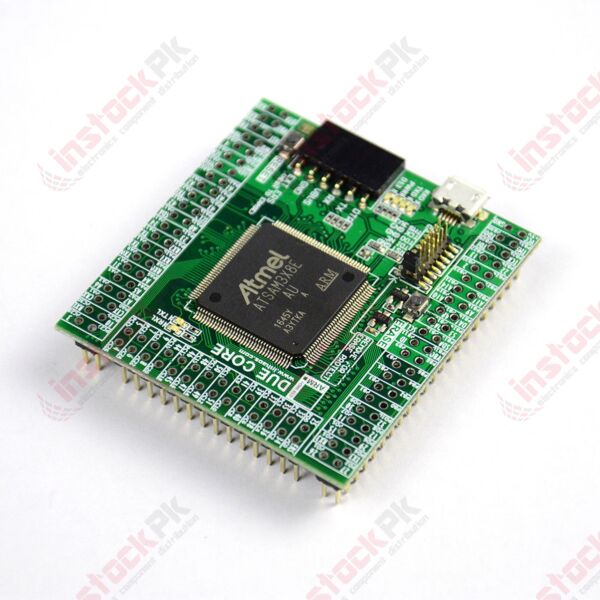

    DUE-CORE is a compact version of DUE , It integrates all peripherals required for MCU , and all GPIO are connected to the 2.54mm connectors for users. As a standard MCU core board, apart from main features with DUE also has the following features:

  • Compact size: All components are put on a 54 x 58mm 4-Layers PCB. All IO are connected to 116pin 2.54 standard connector. User can apply the PCBA to any application even the size is very compact.
  • Easy to use: All IO are connected to 116pin 2.54 standard connector. Only a 5V power to the board to make it work.
  • Stable design: adopt high-cost 4-layer PCB layout , two 5V to 3.3V LDO onboard , one is for digital part and one is for analog part. Separate AVCC and AGND, to ensure the best analog performance.
  • Easy to set up the development environment: Fully development on Arduino IDE , uploading sketch through standard Arduino 6pin UART interface, standard Micro usb connector , full use of existing resources .
  • User-friendly design: Rich LED status indication, two onboard buttons, one is for MCU reset , and other one is for Flase Erase.     Unique jumper erase protection against the flash erased by mistake operation.
  • Rich resource : All IO are connected out for the user, even if not defined Arduino. Onboard I2C EEPROM designed to compensate for the shortcomings of SAM3X8E no built-in EEPROM.

This item included a UC-2102 USB to UART convertor  and a DUE-CORE , you can use it with Arduino IDE immediately.



Parameters:

Microcontroller:

AT91SAM3X8E LQFP-144

Operation Voltage:

3.3V

Input voltage:

5V

Total connector pins:

44 + 44 + 28 = 116Pins

Flash:

2 x 256 Kbytes

SRAM:

64 + 32 Kbytes

Clock Speed:

84 MHz

Number of PIOs:

103

NAND Flash Controller (NFC):

Yes

SHDN Pin:

Yes

EMAC:

MII/RMII

External Bus Interface:

16-bit data / 8 chip selects / 23-bit address

Central DMA:

6

12-bit ADC:

16 ch

12-bit DAC:

2 ch

32-bit Timer:

9 ch

PDC Channels:

17

USART/UART:

3 / 2 (USART3 in UART mode (RXD3 and TXD3 available))

SPI:

1 SPI controller,4 chip selects +3 USART with SPI mode

HSMCI:

1 slot, 8 bits

Clock Speed:

84 MHz

Board dimension:

54 x 58mm

Arduino resource support:

https://www.arduino.cc/en/Main/ArduinoBoardDue





3. Pin Description:







Notes:

  • D4 connected to both PA29 andPC26
  • D10 connected to both PA28 andPC29
  • The board can be powered by Pin45/46 VCC_5V_IN and GND , also can be powered by USB or Programming port.
  • If VCC_5V_IN and USB or Programming port are connected at the same time , the board will VCC_5V_IN is priority.
  • The VCC_5V_IN must limit tolerance within +/-5% , which means the voltage range is 4.75-5.25V
  • The GND(Pin-46) and AGND(Pin-13) are connected by onboard 0R resistor.





4.Typical application

  • Power Connection 1: powered by Programming port, in this case , the module can be powered by VBUS_5V form the USB to UART cable (Recommend UC-2102). The connection as below :
