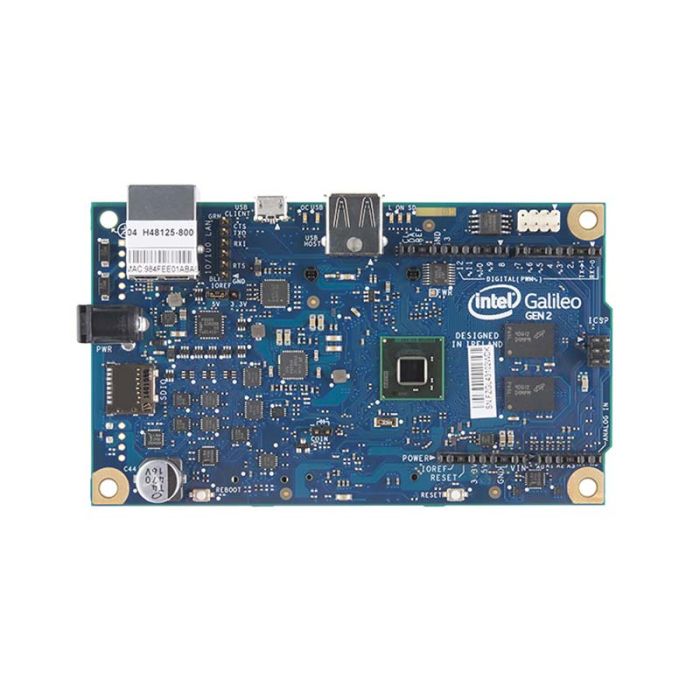

Intel Galileo Gen 2 Development Board

SKU
MD-00312
-27%
Special Price PKR 9,150.00 was PKR 12,600.00
Out of stock
Galileo 2 is a microcontroller board based on the Intel Quark SoC X1000 Application Processor, a 32-bit Intel Pentium-class system on a chip.

Galileo 2 is a microcontroller board based on the Intel Quark SoC X1000 Application Processor, a 32-bit Intel Pentium-class system on a chip. It’s the second generation of the board which is based on Intel architecture designed to be hardware and software pin-compatible with Arduino shields designed for the Uno R3.A full sized mini-PCI Express slot, 100Mb Ethernet port, Micro-SD slot, USB TTL UART header, USB Host port, USB Client Port, and 8 MByte NOR flash come standard on the board.

The genuine Intel processor and surrounding native I/O capabilities of the SoC provides for a fully featured offering for both the maker community and students alike. It will also be useful to professional developers who are looking for a simple and cost effective development environment to the more complex Intel® Atom™ processor and Intel® Core™ processor-based designs.

FEATURES:

  1. Intel Quark SoC X1000 application processor, a 32-bit, single-core, single-thread, Intel® Pentium processor instruction set architecture (ISA)-compatible, operating at speeds up to 400 MHz.
  2. Support for a wide range of industry standard I/O interfaces, including a full-sized mini-PCI Express slot, 100 Mb Ethernet port, microSD slot, USB host port, and USB client port.
  3. 256 MB DDR3, 512 kb embedded SRAM, 8 MB NOR Flash, and 8 kb EEPROM standard on the board, plus support for microSD card up to 32 GB.
  4. Hardware and pin compatibility with a wide range of Arduino Uno R3 shields.
  5. Programmable through the Arduino integrated development environment (IDE) that is supported on Microsoft Windows, Mac OS, and Linux host operating systems.
  6. Support for Yocto 1.4 Poky Linux release.

BLOCK DIAGRAM:

 BLOCK DIAGRAM

RELATED DOCUMENTS:

  1. Intel Galileo Gen 2 Development Board Datasheet

PACKAGE INCLUDES:

  1. 1 X Intel Galileo Gen 2 Development Board



Weight 100.0000
Manufacturer Intel®
Model Number Intel® Quark Soc X1000
Voltage (V) 7-15
Current (A) NA
Power NA
Processor Quark Soc X1000
Frequency 400MHz
Memory 512KB SRAM
Display Type NA
Bluetooth Interface No
Interface SDIO, UART, SPI, USB, I2C, Ethernet, RTC
Size (mm) 15X15
