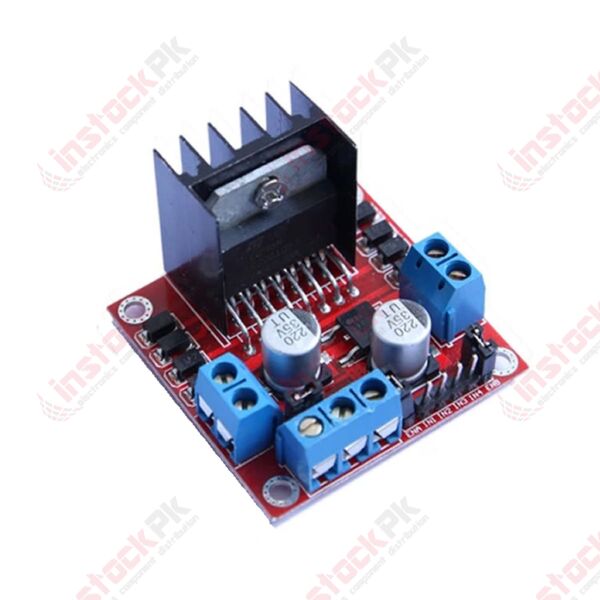

Dual Stepper Motor Driver Controller Module L298N

SKU
MD-00063
PKR720.00
Quantity: 6
The L298N is the ST Company production of a high-voltage, high-current motor driver chips. The chip can drive two-phase stepper motors or four-phase stepper motor and also drive two DC motors.
  • Buy 3 for PKR684.00 each and save 5%
  • Buy 10 for PKR662.40 each and save 8%
  • Buy 25 for PKR612.00 each and save 15%

This module uses ST's L298N chip as the main driver, driving ability, low heat, strong anti-interference ability.This module can use the built-in 78M05 to take power by driving the power section, but in order to avoid damage to the regulator chip, when use is greater than the drive voltage of 12V, use an external 5V logic supply.The module uses a large-capacity filter capacitors, drain diode can improve reliability.

SPECIFICATIONS:

  1. Double H bridge drive
  2. Chip L298N
  3. Logical voltage 5V
  4. Drive voltage 5V-35V
  5. Logical current 0mA-36mA
  6. Drive current 2A(MAX single bridge)
  7. Storage temperature -20℃ to +135℃
  8. Max power 25W
  9. Size:43x43x27mm

RELATED DOCUMENTS:

  1. Datasheet.

PACKAGE INCLUDES:

  1.  1 X Dual Stepper Motor Driver Controller Module L298N
Part Number L298N
Manufacturer Made in China
Weight (KG) 0.020000
Product Availability In Stock
