LattePanda - 7" LCD IPS Display for LattePanda V1.0 1024 x 600

More Views

LattePanda - 7" LCD IPS Display for LattePanda V1.0 1024 x 600
SKU: MD-01284
PKR 6,990.00
  • Buy 2 for PKR 6,450.00 each and save 8%
  • Buy 5 for PKR 6,190.00 each and save 12%

Availability: In stock

LattePanda 7 inch screen, perfect visual experience with IPS screen technology and 1024 * 600 high resolution, easy to install, All you need to do is power your ...
Description

Details

Introduction

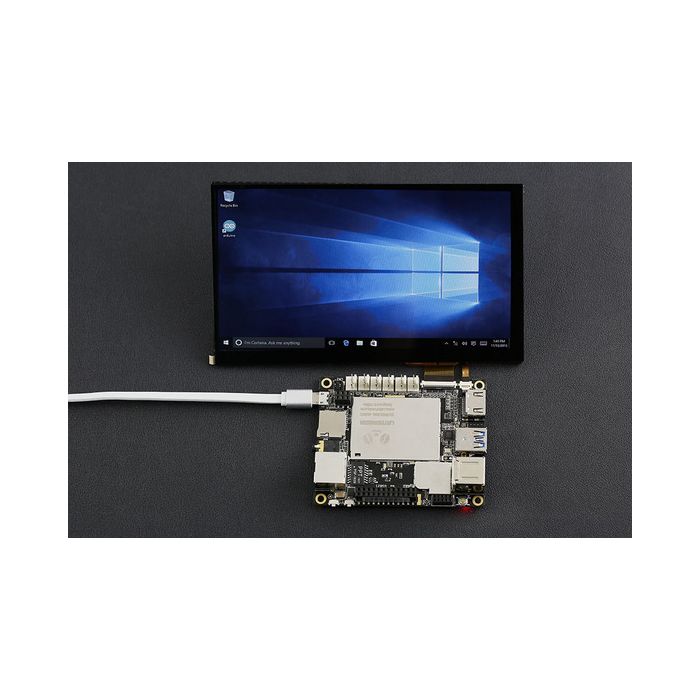

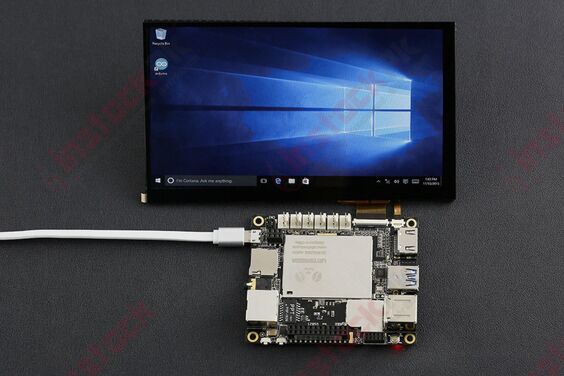

Add exciting new dimensions to your project with this large full-color display. All you need to do is power your LattePanda V1.0 single board computer (not compatible with LattePanda Alpha & Delta) and you have a visual user interface for your project - no extra power cables required! The border of the display is insulated with black tape so that even without and enclosure there is no possibility of a short-circuit. The picture below shows a LattePanda directly powering the 7" display.
7


Note: LattePanda uses a custom MIPI pinout that will not be compatible with alternative IPS displays! You can still use HDMI out. Use your display in conjunction with the capacitive touch panel (not included) to get a touch interface for your project!


Specification

  • 7" IPS display
  • 1024 x 600 high resolution
  • Dimensions: 164.0mm x 96.0mm x 2.6mm
  • Supports LattePanda V1.0 (not compatible with LattePanda Alpha & Delta)
  • 10cm FPC connector

Shipping List

  • 7" 1024 x 600 IPS Display x 1
Additional Information

Additional Information

Part Number FIT0477
Weight (g) 50.0000
Manufacturer LattePanda
