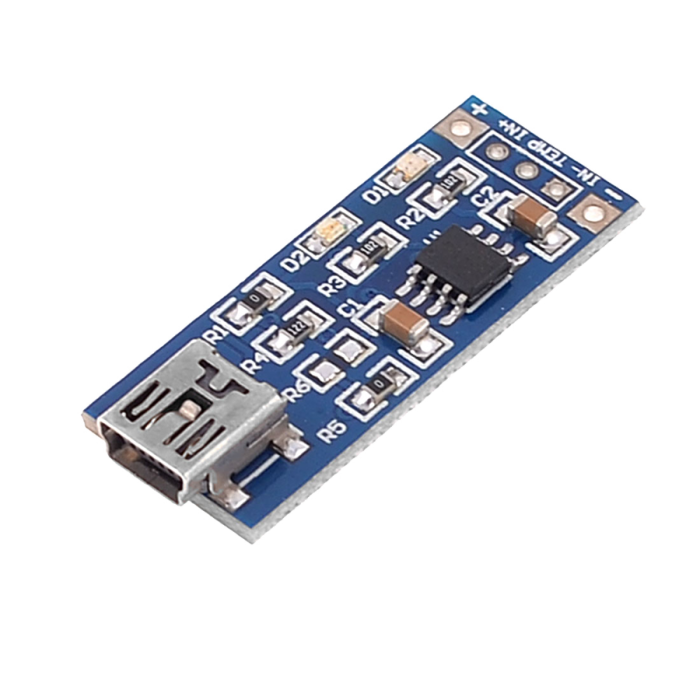

Lithium Battery Charging Board Module(TP4056)
SKU
MD-00023
PKR190.00
Quantity: 0
This charger is a very small module for DIY people, it uses the TP4056 controller and standard configuration is with 1A charge current.
Categories: Smart Boards, Power Module
The board needs a 5 volt power supply, this can either be from a mini usb connector or soldered directly to the board.
The "current resistor" can be replaced for other (lower) charge currents, because it is a 0603 size smd resistor (i.e. very small) it can be difficult to replace it.
The charge led will be on when charging and it will be flashing when no battery is connected.
The done led will be on when charging is done or no battery is connected.
-Package Type:SOP
-Input voltage:4V-8V
-Model:TP4056
-PCB board size:37.3 (mm) x15 (mm)
The charge led will be on when charging and it will be flashing when no battery is connected.
The done led will be on when charging is done or no battery is connected.
-Package Type:SOP
-Input voltage:4V-8V
-Model:TP4056
-PCB board size:37.3 (mm) x15 (mm)
| Part Number | NA |
|---|---|
| Manufacturer | Made in China |
| Weight (KG) | 0.200000 |
