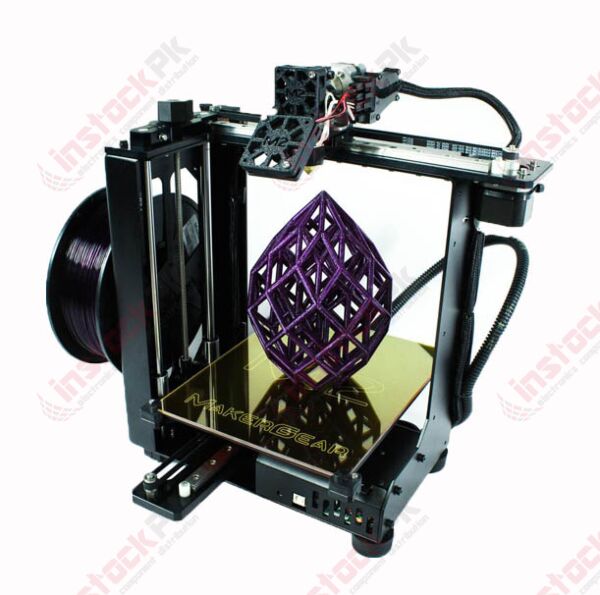

MakerGear M2 Desktop 3D Printer
- Buy 2 for PKR412,905.00 each and save 4%
FEATURES:
- Reliability: With its steel frame and CNC machined cast aluminum construction, the M2 is engineered and manufactured to provide industrial level precision with a small footprint. The new four-point print bed is easy to level, stays level, and removes the need for z-compensation (aka “auto-leveling”). Whether you are a professional or a weekend hobbyist, the M2 is built to run and built to last.
- Freedom: While MakerGear filament is recommended, you are free to use the filament of your choice. The M2 also uses open-source electronics and firmware. The M2 provides the versatility and flexibility you need to accomplish your project your way.
- Ready to Use: Every M2 is tested at the MakerGear factory in Beachwood, Ohio and is ready to use out of the box. The Quick Start software, step-by-step user guide, and tutorial video will take you from unboxing through your first prints.
- The Real Deal: With it’s ease of use, reliability, excellent prints, high-quality construction and components, and MakerGear’s prompt in-house support from M2 experts, you really do get it all with the MakerGear M2
SPECIFICATIONS:
|
Build Dimensions |
200 mm (8") x 250 mm (10") x 200 mm (8") |
|
Build Plate |
110 °C and higher. Borosilicate glass print bed with laminated, replaceable print surface. |
|
Build Plate Leveling |
4 point leveling. Level out of the box. Leveling assisted by quickstart app. |
|
Filament Feed |
Direct (non-Bowden). |
|
Materials |
1.75 mm. PLA, ABS, PET, HIPS, HDPE, TPU (i.e., flexible filament), Polycarbonate, composite (Metal-, Carbon Fiber-, or Wood-Filled), and many more! |
|
Nozzle |
Shipped with 0.35 mm brass (0.25mm, 0.5mm, 0.75mm brass and 0.35mm and 0.50mm steel are available on the MakerGear website). |
|
Maximum Extruding Temperature |
40 W heater and thermistor rated to 300 °C. |
|
Hot End |
Single extruder. Dual extruder upgrade available. Hot End is easy to swap/upgrade. |
|
Print technology |
FFF (Fused Filament Fabrication) |
|
X/Y Motion |
Independent axes with high precision linear rails guiding motion driven by kevlar reinforced belts. |
|
Z motion |
10 mm rods guide motion driven by lead screw. |
|
Layer Resolution |
smaller than 50 micron to 0.25 mm with a 0.35 mm nozzle. Please note there is more to print quality than layer thickness. |
|
Print head travel speed |
Printing: 80 - 200 mm/sec for best print quality. Travel Speed: 450 mm/sec maximum. |
|
Ambient operation temperature |
15 ˚C to 32 ˚C (59 ˚F to 90 ˚F) |
|
Storage temperature |
0 ˚C to 32 ˚C (32 ˚F to 90 ˚F) |
|
Operating Sound |
lower than 65 dBA |
|
Machine Weight |
12 kg (26.5 lbs.) |
|
Machine Dimensions with spool and full range of motion |
Width x Depth x Height: 533 mm (21") x 610 mm (24") x 420 mm (16.5"). |
|
shipping box dimensions |
19 kg (42 lbs.). 535 mm x 535 mm x 535 mm (21" x 21" x 21"). |
|
AC input |
100 - 120 V (4 A)/220 - 240 V (2 A), 47 - 63 Hz |
|
Power requirements |
24 V DC @ 15 A |
|
Power consumption |
360 W max |
|
Software |
Compatible with many open-source and commercially available modeling, slicing, and printer control software available for Windows, Mac, and Linux. Simplify3D software is recommended. |
|
Connectivity |
SD Card Reader, USB connection to computer, LCD machine control optional |
PACKAGE INCLUDES:
- 1 x MakerGear M2 Desktop 3D Printer
| Part Number | M2 |
|---|---|
| Weight (KG) | 12.000000 |
| Manufacturer | MakerGear |
| Model | MakerGear M2 |
| Voltage (V) | AC 220 ± 10% 50Hz |
| Output Voltage | 12V 15A |
| Maximum Printing Size | NA |
| Nozzle Type | NA |
| Filament Diameter | 1.75mm |
| Operating System | Linux,Mac,Windows |
| Interface | SD Card or USB |
| Printing Speed | 450 mm/sec maximum |
| Support Material | ABS,PLA,Wood,HIPS,flexible PLA,PA(Nylon) |
| Size (mm) | NA |
