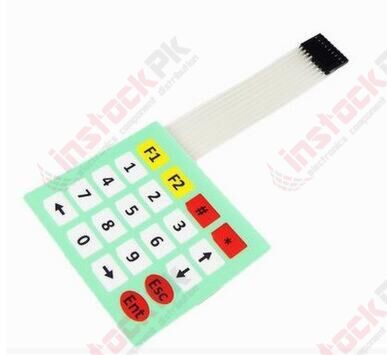

Matrix 20 Key Membrane Switch Keypad (4 x 5)

SKU
MD-00479
PKR200.00
Quantity: 0
Matrix 20 Key Membrane Switch Keypad (4 x 5)
  • Buy 3 for PKR190.00 each and save 5%
  • Buy 10 for PKR185.00 each and save 8%
  • Buy 50 for PKR180.00 each and save 10%

Matrix 20 Key Membrane Switch Keypad (4 x 5)

SPECIFICATIONS:

  1. Cable Length: 3-1/3″ or 85mm
  2. Connector: Dupont 9 pins, 0.1″ (2.54mm) Pitch
  3. Mount Style: Self-Adherence
  4. Max. Circuit Rating: 35VDC, 100mA
  5. Insulation Spec.: 100M Ohm, 100V
  6. Dielectric: Withstand 250VRms (60Hz, 1min)
  7. Contact Bounce: <=5ms
  8. Life Expectancy: 1 million closures
  9. Operation Temperature: -20 to +40 °C
  10. Sticker / glue on the back side

PHYSICAL  DIAGRAM:

 PHYSICAL DIAGRAM

PACKAGE INCLUDES:

  1. 1 X Matrix 20 Key Membrane Switch Keypad (4 x 5)
Weight (KG) 0.020000
Manufacturer Made in China
