MeanWell - Switching Power Supply LRS-350-12 348W 12V 29A

More Views

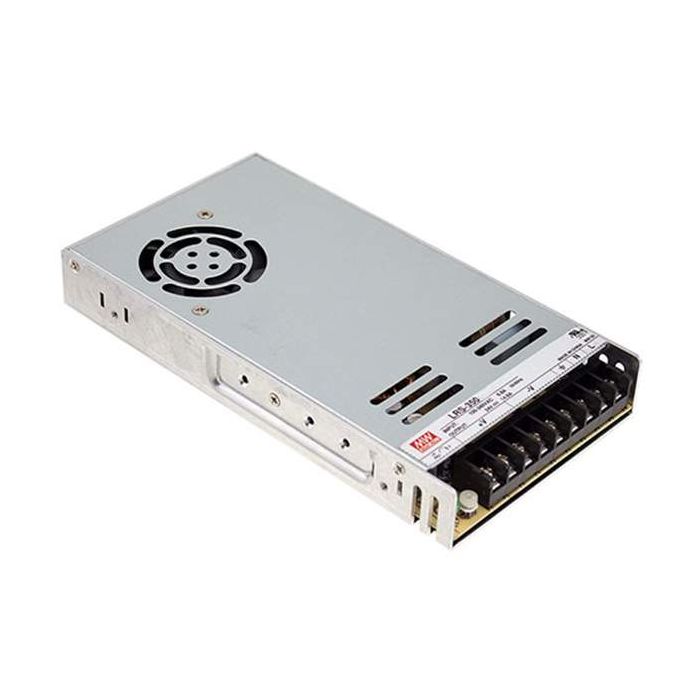

MeanWell - Switching Power Supply LRS-350-12 348W 12V 29A
SKU: MD-01212
PKR 6,850.00
  • Buy 5 for PKR 6,590.00 each and save 4%
  • Buy 20 for PKR 5,900.00 each and save 14%

Availability: Preorder, Delivery in 15-20 Days

Switching Power Supplies 348W 12V 29A 115Vac or 230Vac
Description

Details

348W 12V 29A Single-Output Enclosed Power Supply

12 Volts @ 29 Amps

Features

  • AC input range selectable by a switch
  • Withstand 300 VAC surge input for 5 seconds
  • No load power consumption <0.75W
  • 1U low profile
  • High operating temperature, up to 70°C
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in cooling fan, ON-OFF control
  • Compliance to UL 60950-1
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 year warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus



SpecificationValue
Primary Output Voltage (VDC) 12
Output Current (A) 29
Maximum Output Power (W) 350
Family LRS-350
Input Voltage (VAC) 90 to 132, 180 to 264
Input Frequency 47 to 63
Maximum Input Current (A) 6.8
Output Connector Type Screw Terminal Block
Number of Outputs 1
Product Type AC to DC Power Supply
Agency Approvals UL/CUL
Efficiency (%) 85
Minimum Isolation Voltage 3000V
Operating Temperature-Min (Cel) -25
Operating Temperature-Max (Cel) 70
Length (inch) 8.5
Width (inch) 4.5
Height (inch) 1.2
Color Silver
Style Enclosed
Output Voltage (Channel 1) 12 VDC
Output Current (Channel 1) 29 A
Additional Information

Additional Information

Part Number LRS-350-12
Manufacturer Mean Well
