Minew Tech - Bluetooth BLE 4.0 Rock Beacon i7 With nRF52810/nRF52832

SKU
MD-01258
PKR2,650.00
Quantity: 0

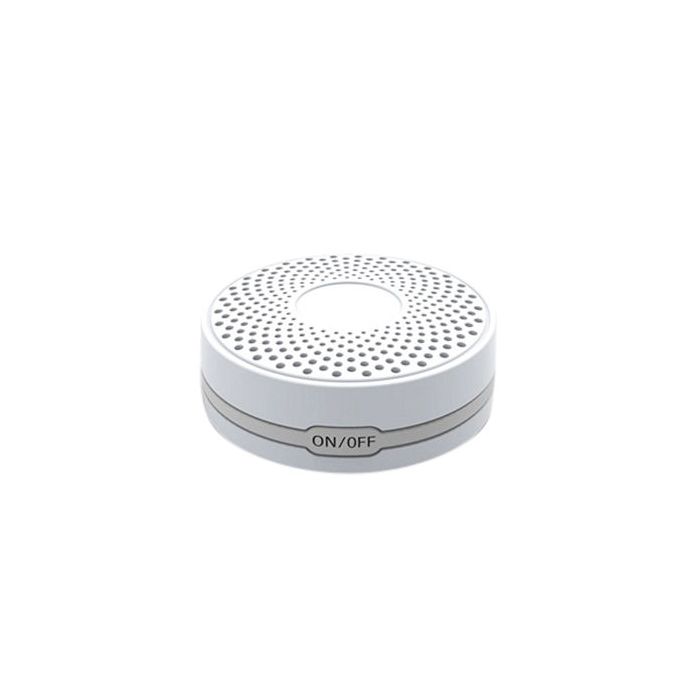

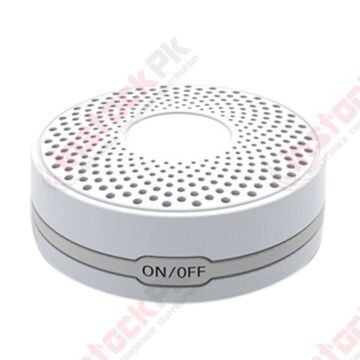

Rock Beacon i7 is a very popular and modern iBeacon with ARM core chipset nRF52810/nRF52832 and leverage BLE 4.0 technology, it has an external ON/OFF button, accurate hardware and robust firmware.
  • Buy 3 for PKR2,570.00 each and save 3%
  • Buy 10 for PKR2,430.00 each and save 8%
  • Buy 50 for PKR2,380.00 each and save 10%
Features

Programmed MiniBeacon standard firmware

Included 1pc 1000mAh coin battery

The max. 100 meters advertising distance

Ultra-low power consumption chipset nRF52810/nRF52832 with ARM core

Easy to print the logo on the center of top case

Specification

Compatibility

Supported ios 7.0+, android 4.3+, apple iBeacon™ standard, bluetooth 4.0 (BLE) devices

Battery Lifetime

18 months, real time battery level notification

OTA and J-Link

Supported OTA, reserved J-Link port on the board for programming

Configurable Parameters

UUID, major, minor, device name, password etc., special configuration APP

Transmission Power Levels

8 adjustable levels, range from 0 to 7

Transmission Power Range

-30dBm to +4dBm

Soft Reboot

Reboot the device via command without any tools

Connection Mode

Advertising mode, non connectable, configuration mode, connectable

Mounting

3M brand adhesive for direct mounting to wall

Parameters

Case Color

White, pink, green, can be customized

Battery Model

1 x CR2477, 1000mAh, 3.0V

Operation Voltage

1.8-3.6V

Transmission Circuit

10.5mA (Max.)

Transmission Range

Maximum 100 meters

Antenna

50ohm, on board/PCB Antenna

Accessories

Double adhesive

Net Weight

26.0g, with battery

Size

Ø 50 x 15 mm


Part Number i7
Manufacturer Minew Technologies
Weight (KG) 0.025000
