Mini RS232 to TTL Converter Module Board

SKU
MD-00134
PKR110.00
Quantity: 0

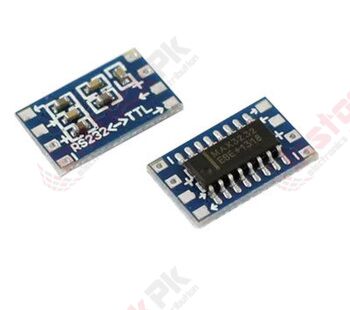

Mini RS232 to TTL Converter Module Board
  • Buy 5 for PKR91.00 each and save 17%
  • Buy 25 for PKR88.00 each and save 20%
  • Buy 100 for PKR86.00 each and save 22%

The Module front and back, both sides of the power supply is connected together, you can just take one side, both sides were two independent channels can be used, arrows indicate the signal flow, to explain where is the input, the outward description is output, near the end of RS232 RS232 character level character near the end TTL TTL level.



Specifications:



  1. A converter board for electrical levels
  2. Chip Model: MAX3232CSE
  3. Voltage Range: 3~5V
  4. Max. Baud Rate: No more than 120kbps
  5. Dimension: 9.4mm x 15.9mm


Related Documents:



MAX3232CSE DataSheet

Part Number NA
Manufacturer Made in China
Weight (KG) 0.004000
