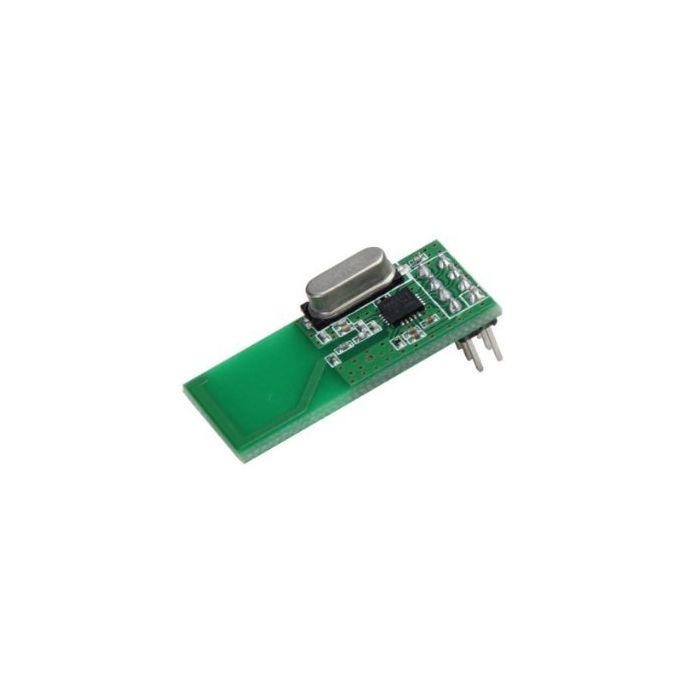

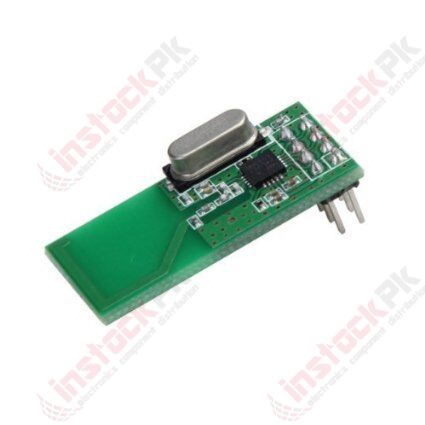

NRF24LP-D01 2.4GHz Wireless Transceiver Module

More Views

NRF24LP-D01 2.4GHz Wireless Transceiver Module
SKU: CM-00010

Regular Price: PKR 280.00

Special Price PKR 250.00

Availability: In stock

This Module can be used to Wireless date communication , smart home system,Remote control, wireless toys, wireless indoor and underwater lighting.



1)High efficient GFSK modulation
2)Excellent anti-interference performance
3)Ultra low power consumption
4)Can set up address for data security


1)Worldwide 2.4GHz ISM band operation
2)Up to 2Mbps on air data rate
3)125 channels for multipoint and frequency hopping communication (2400--2525MHZ)
4)Built in CRC, FEC error detecting and point to multipoint address control
5)Support Network: 2.4G
6)Frequency Band: 2400 MHz
7)PCB2.4Ghz antenna (Not included)
8)Power Supply: 3.3V
9)Power: 0.001W
10)Min. Emission Current: 7mA
11)Power down Current: 1uA
12)Max. Transmitting Power: 0dBm
13)Transmitting Current: 11.3mA at 0dBm
14)Receiving Sensitivity: -85dBm at 1Mbps
15)Receiving Current: 11.8mA at 1Mbps
16)2.54mm Standard DIP interface
17)Operating Range: 80 meters (Open space)
18)Size: 33 x 15 x 1.5mm


1)Wireless date communication, smart home system
2)Remote control, wireless toys, wireless indoor and underwater lighting
3)rrigation control system for industry and agriculture

Additional Information

Additional Information

Part Number No
Manufacturer Made in China
Weight (g) 10.0000
