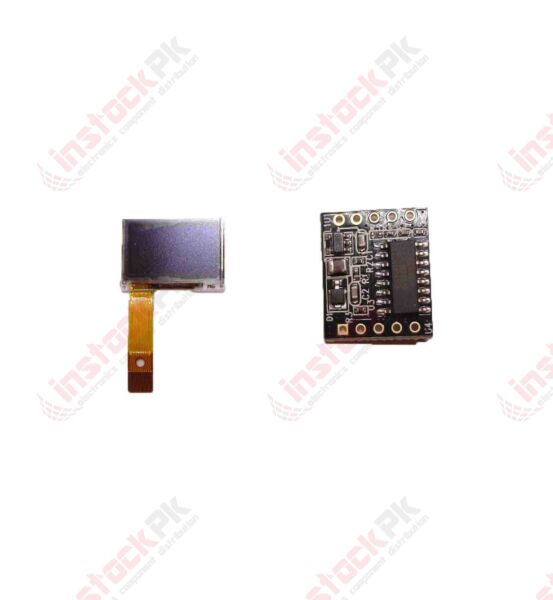

OLED Display Shield 0.5 Inch for Arduino

SKU
MD-00526
PKR3,400.00
Quantity: 0
This mini OLED display is small as the grown-up's fingernail- 5" only. It has 450cd/m^2 screen brightness with extremely high contrast and readability; moreover, it contains 60 x 32 independent white OLED pixels that each can be separately controlled by the driver chip.
  • Buy 3 for PKR3,230.00 each and save 5%
  • Buy 20 for PKR3,130.00 each and save 8%
  • Buy 50 for PKR3,060.00 each and save 10%

This mini OLED display is small as the grown-up's fingernail- 5" only. It has 450cd/m^2 screen brightness with extremely high contrast and readability; moreover, it contains 60 x 32 independent white OLED pixels that each can be separately controlled by the driver chip. This means you can display any images and words on the screen . Except this, the spontaneous light OLED display does not require a backlight, which greatly reduces the power consumption.

SPECIFICATIONS:

  1. Operating Voltage:3.3V
  2. PCB dimension: 17.8mm x 15.5mm (0.70*0.61")
  3. Screen size: 0.5" inch (W*H: 15.30x10.20 mm)
  4. Color: Monochrome (white)
  5. OLED type: PM -OLEDOLED driver: LD7032
  6. Pixels : 60 x 32
  7. Contrast: 2000: 1
  8. Communication: SPI, I2C

RELATED DOCUMENTS:

  1.  OLED Display Shield 0.5 Inch User Guide.

PACKAGE INCLUDES:

  1. 1 X OLED Display Shield 0.5 Inch for Arduino.



Weight (KG) 0.050000
Manufacturer DFRobot
Contrast Ratio 2000: 1
Response Time NA
Model OLED Display Shield 0.5 Inch
Screensize 0.5'' Inch
Display Resolution (Pixels) 60 x 32
Interface SPI, I2C
