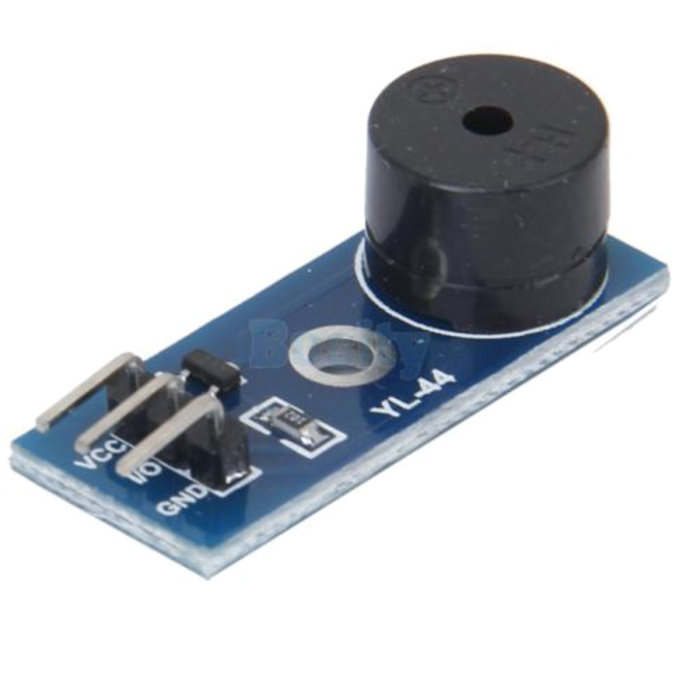

Passive Buzzer Alarm Module Sensor Beep
SKU
SN-00017
Category: Sensor Modules
3.3-5V Passive Buzzer Alarm Module Sensor Beep
No oscillation source,need square wave(frequency 2K-5K ) to drive
Audion 9012 drive;
Work Voltage:3.3-5V
Set bolt hole,easy to assemble
PCB Dimension:3.3cm*1.3cm
Pin definition:
Vcc 3.3~5V
GND the Ground
I/O I/O interface of SCM
No oscillation source,need square wave(frequency 2K-5K ) to drive
Audion 9012 drive;
Work Voltage:3.3-5V
Set bolt hole,easy to assemble
PCB Dimension:3.3cm*1.3cm
Pin definition:
Vcc 3.3~5V
GND the Ground
I/O I/O interface of SCM
| Part Number | NA |
|---|---|
| Weight (KG) | 0.500000 |
