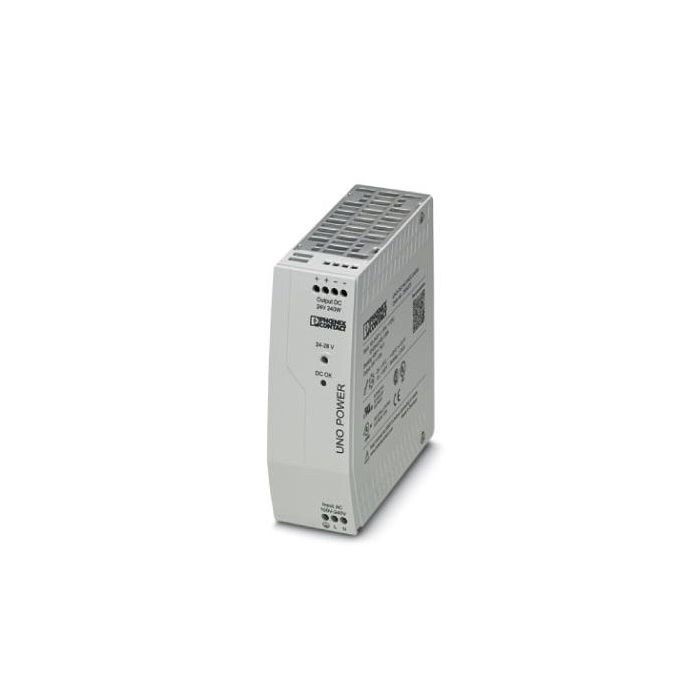

Phoenix Contact Power Supply Unit-UNO-PS/1AC/24DC/240W

FEATURES:

1. Efficiency: > 93 % (for 230 V AC and nominal values)
2. Insulation voltage input/output: 4 kV AC (type test)
3. 3 kV AC (routine test)
4. Protection class: I (in closed control cabinet)
5. MTBF (IEC 61709, SN 29500): > 562000 h (40°C)
6. Mounting position: horizontal DIN rail NS 35, EN 60715
7. Assembly instructions: Alignable:0 mm horizontally, 30 mm vertically
8. Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
9. Low Voltage Directive: Conformance with LV directive 2006/95/EC
10. Standard – Electrical equipment of machines: EN 60204-1
11. Information technology equipment - safety (CB scheme): CB Scheme

SPECIFICATION:

1. Nominal input voltage range: 100 V AC ... 240 V AC
2. Input voltage range: 85 V AC ... 264 V AC
3. AC frequency range: 45 Hz ... 65 Hz
4. Inrush surge current:   < 80 A (typical)
5. Input fuse: 5 A (slow-blow, internal)
6. Choice of suitable fuses: 6 A ... 16 A (Characteristics B, C, D, K)
7. Type of protection: Transient surge protection
8. Nominal output voltage: 24 V DC ±1 %
9. Nominal output current: 10  A (-25°C ... 55°C)
10. Derating: 55 °C ... 70 °C (2.5%/K)
11. Residual ripple: < 50 mVPP (with nominal values)
12. Output power: 240 W
13. Typical response time : < 1 s
14. Maximum power dissipation NO-Load: < 1.1 W
15. Power loss nominal load max.: <18.8 W

PARAMETERS:

1. Net weight: 0.66 kg
2. Width: 55 mm
3. Height:130 mm
4. Depth:125 mm

PACKAGE INCLUDES:

1. 1 X Phoenix Contact Power Supply Unit-UNO-PS/1AC/24DC/240W
