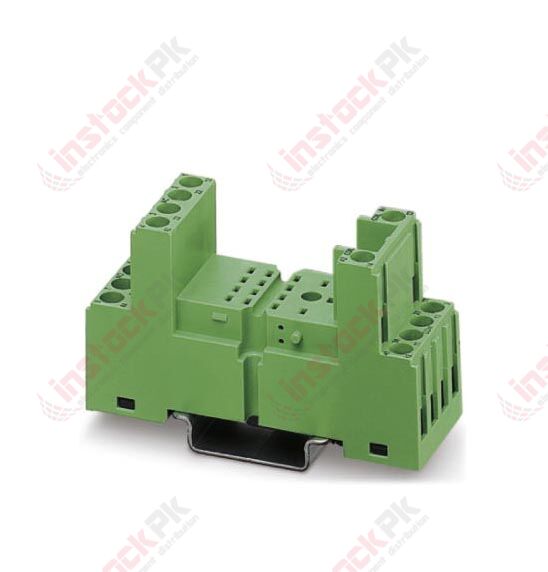

Phoenix Contact Relay Socket-PR2-BSC2/4X21

SKU
PC-00016
PKR300.00
Quantity: 0
Phoenix Contact Relay Socket-PR2-BSC2/4X21
  • Buy 60 for PKR285.00 each and save 5%

FEATURES:





  1. Nominal voltage UN: 300 V AC/DC
  2. Nominal current IN: 12 A
  3. Color: green
  4. Connection name: Input side
  5. Connection method: Screw connection
  6. Stripping length: 7 mm
  7. Screw thread: M3
  8. Conductor cross section solid: 0.2 mm² ... 2.5 mm²
  9. Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
  10. AWG conductor cross section: 26 ... 14



CLASSIFICATIONS:





eCl@ss



  1. eCl@ss 4.0: 27371102
  2. eCl@ss 4.1: 27371102
  3. eCl@ss 5.0: 27371603
  4. eCl@ss 5.1: 27371603
  5. eCl@ss 6.0: 27371603
  6. eCl@ss 7.0: 27371603
  7. eCl@ss 8.0: 27371603





PARAMETERS:



  1. Width: 27 mm
  2. Height: 75 mm
  3. Depth with retaining bracket: 84 mm (EL2-P35)



PACKAGE INCLUDES:





  1. 1 X Phoenix Contact Relay Socket-PR2-BSC2/4X21
Part Number NA
Weight (KG) 0.062960
Manufacturer phoenix contact
Packing Unit 10 Pieces
Minimum order quantity 10 pc
GTIN 4017918933791
Weight per Piece (excluding packing) 62.960 g
Custom tariff number 85366990
