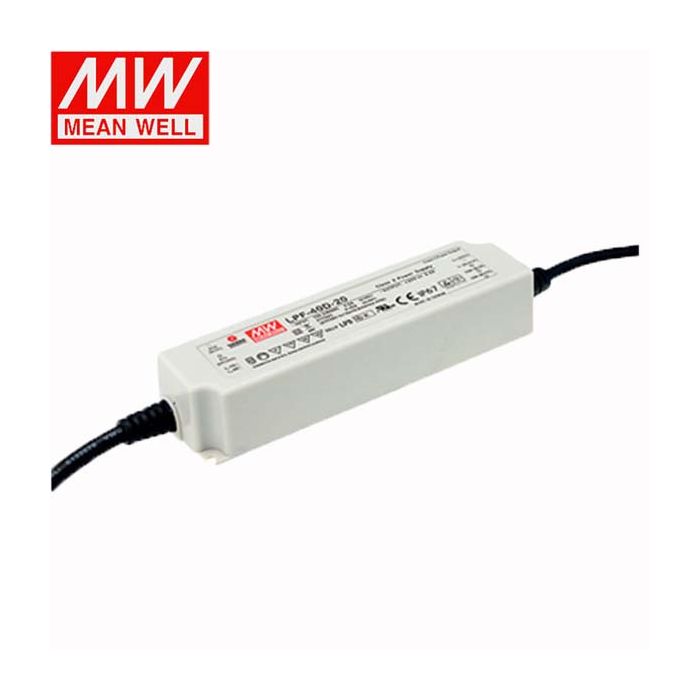

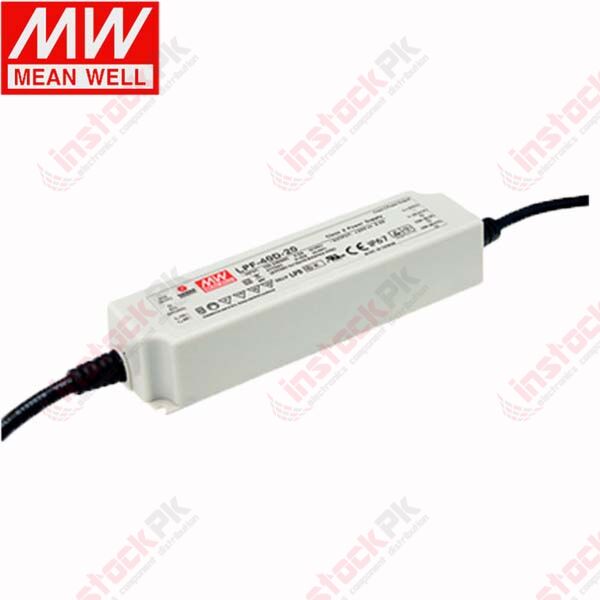

MeanWell Power Supply LPF-40-15 (15V/2.67A) For LED Street Light

SKU
MD-00962
PKR 4,550.00
In stock
Quantity: 0
Mean Well Power Supply LPF-40-15 (15V/2.67A) For LED Street Light
  • Buy 3 for PKR 4,320.00 each and save 5%
  • Buy 10 for PKR 4,150.00 each and save 9%
  • Buy 50 for PKR 3,950.00 each and save 13%
  • Buy 250 for PKR 3,760.00 each and save 17%

FEATURES:

  1. Universal AC input / Full range (up to 305VAC)
  2. Built-in active PFC function
  3. High efficiency up to 85%
  4. Protections: Short circuit / Overload / Over voltage / Over temperature
  5. Cooling by free air convection
  6. Fully isolated plastic case
  7. Fully encapsulated with IP67 level
  8. Class II power unit, no FG
  9. Suitable for LED lighting and moving sign applications
  10. Compliance to worldwide safety regulations for lighting
  11. Suitable for dry / damp / wet locations

SPECIFICATIONS:

  1. Primary Output Voltage (VDC): 15
  2. Output Current (A): 2.67
  3. Maximum Output Power (W): 40.08
  4. Family: LPF-40
  5. Input Voltage (VAC): 90 to 305
  6. Input Frequency: 47 to 63
  7. Maximum Input Current (A): 0.6
  8. Output Connector Type: Stripped and Tinned
  9. Number of Outputs: 1
  10. Product Type: AC to DC Power Supply
  11. Efficiency (%): 85

RELATED DOCUMENTS:

  1. Datasheet.

PACKAGE INCLUDES:

  1. 1 x Mean Well Power Supply LPF-40-15 (15V/2.67A) For LED Street Light
Part Number NA
Weight (KG) 0.440000
Manufacturer Mean Well
Voltage (V) 220
Power 40W
Output Voltage 15V
Current (A) 2.67
Temperature Range (Min) -40°C
Temperature Range (Max) 85°C
Size (mm) NA
