Raspberry Pi Official 7-Inch Capacitive Touch LCD Screen

SKU
MD-00256
PKR 13,600.00
In stock
Quantity: 0
Touchscreen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects.
  • Buy 3 for PKR 12,920.00 each and save 5%
  • Buy 10 for PKR 12,512.00 each and save 8%

The 7” Touchscreen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects. The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi’s GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pi’s.  Touchscreen drivers with support for 10-finger touch and an on-screen keyboard will be integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse.

FEATURES:

  1. 7” Touchscreen Display.
  2. Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
  3. Viewable screen size: 155mm x 86mm
  4. Screen Resolution 800 x 480 pixels
  5. 10 finger capacitive touch.
  6. Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.
  7. Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.

HOW TO BUILD:

 How to build Step 1

 How to build Step 2

 How to build Step 3

 How to build Step 4

 How to build Step 5

 How to build Step 6

 How to build Step 7

COMPATIBLE WITH:

  1. Raspberry Pi 3 Model B
  2. Raspberry Pi 2 Model B
  3. Raspberry Pi Model B+
  4. Raspberry PI Model A+

The display currently does not work with the older Raspberry Pi Model A or B, although there may be a software update to enable compatibility.

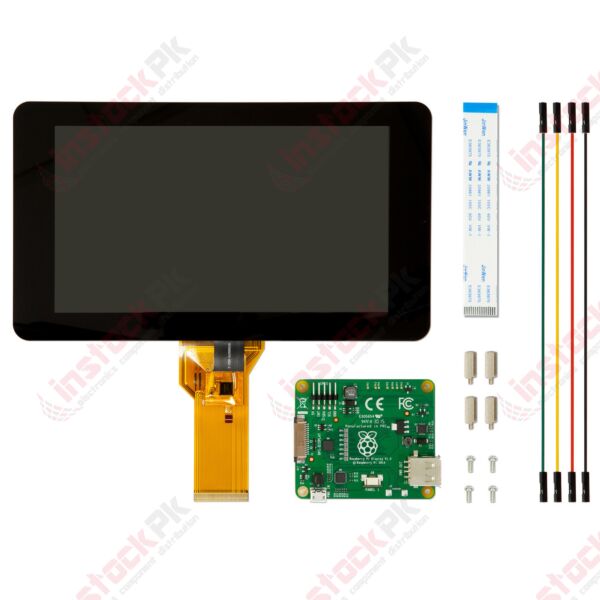

PACKAGE INCLUDES:

  1. Raspberry Pi Official 7-Inch Capacitive Touch LCD Screen
  2. 4 X Jumper Wires
  3. 4 X Stand-offs
  4. 4 X Screws
  5. 1 X Adapter Board
Weight (KG) 0.603000
Manufacturer Made in USA
Contrast Ratio NA
Model NA
Voltage (V) 5
Screensize 7'' Inch
Interface 8bit or 16 bit LCD
